Project segments

Loop 410 San Pedro improvement project

Explore the project in greater detail through the segment maps below. These maps provide a closer look at specific areas of the corridor and highlight the planned improvements within each segment.

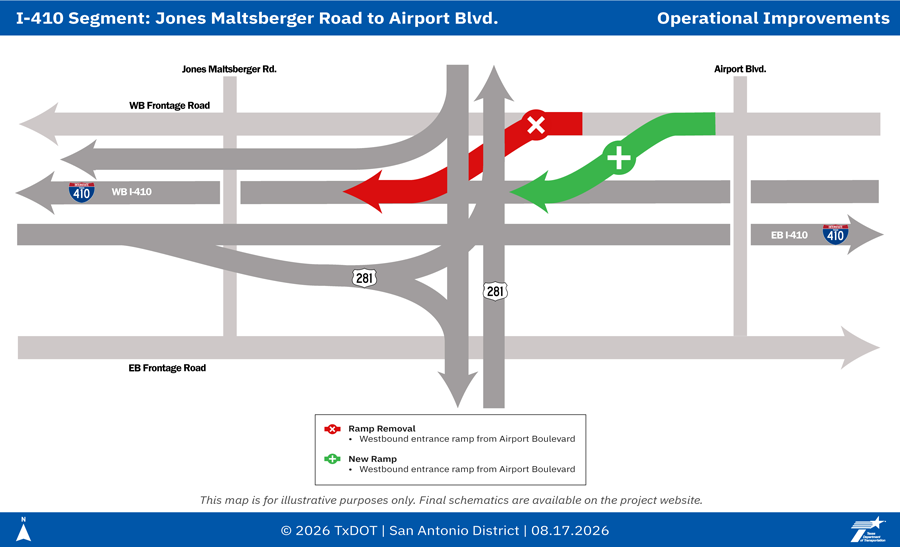

Loop 410 from Jones Maltsberger Rd. to Airport Blvd.

Map showing improvements along I-410 from Jones Maltsberger Road to Airport Boulevard, including ramp removals, new ramps and ramp enhancements to improve traffic flow.

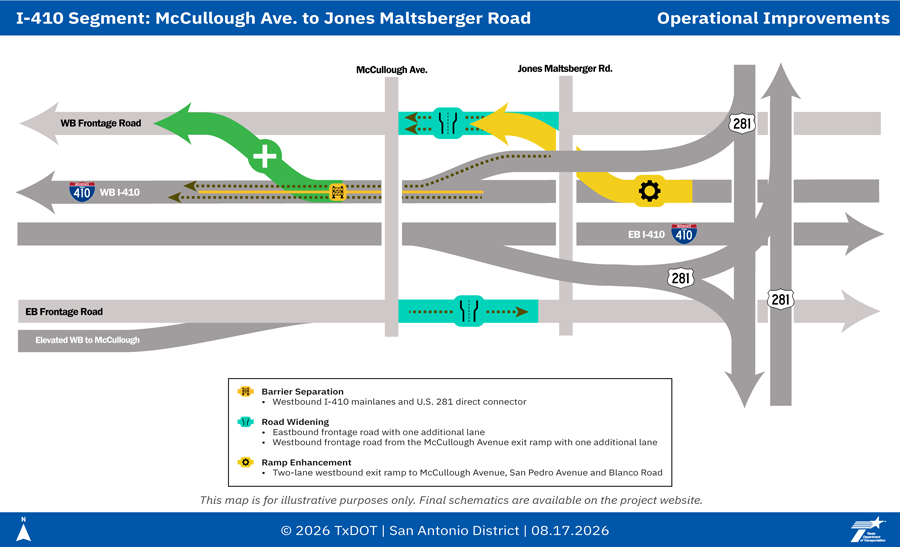

Loop 410 from McCullough Ave. to Jones Maltsberger Rd.

Map showing proposed improvements along I-410 from McCullough Avenue to Jones Maltsberger Road, including barrier separation, roadway widening and ramp enhancements.

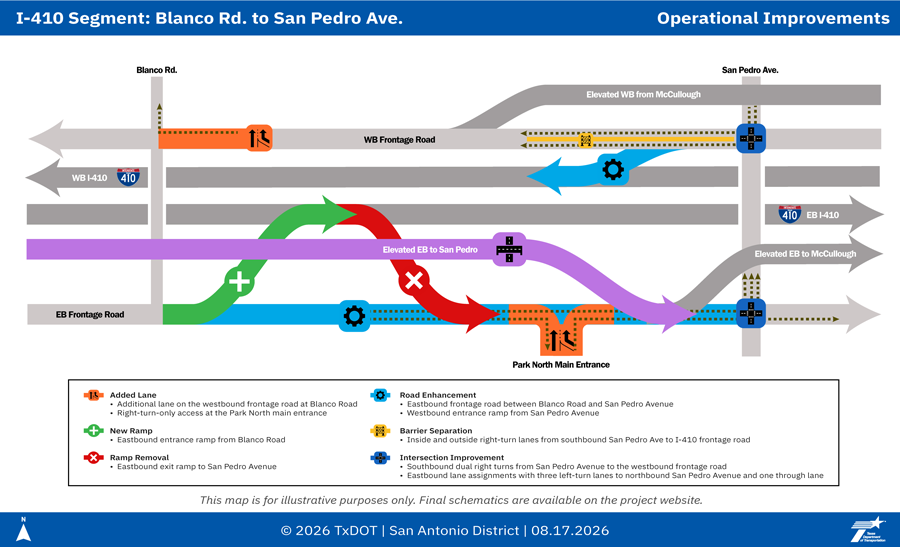

Loop 410 from Blanco Rd. to San Pedro Ave.

Map showing improvements along I-410 from Blanco Road to San Pedro Avenue, including added lanes, a new entrance ramp, ramp removal, roadway enhancements, barrier separation, intersection improvements and an elevated ramp to San Pedro Avenue.

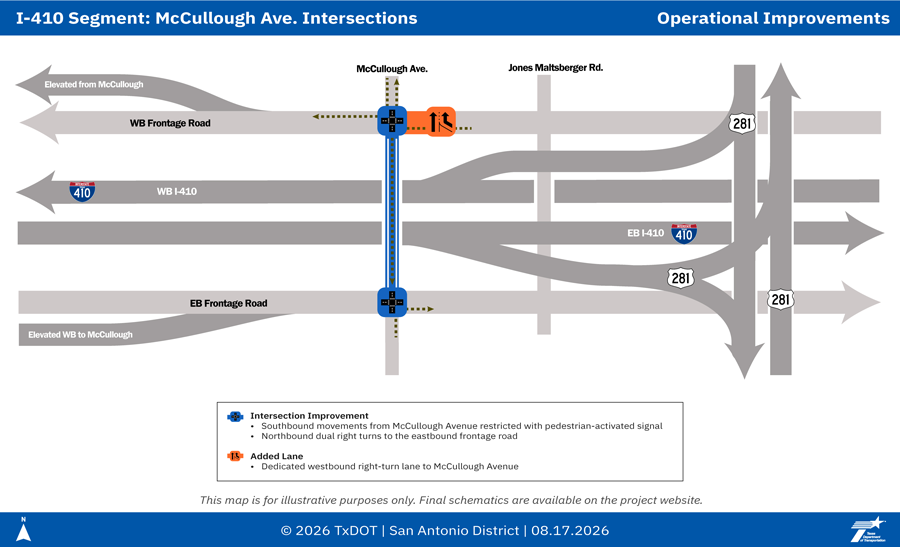

Loop 410 and McCullough Ave. intersection

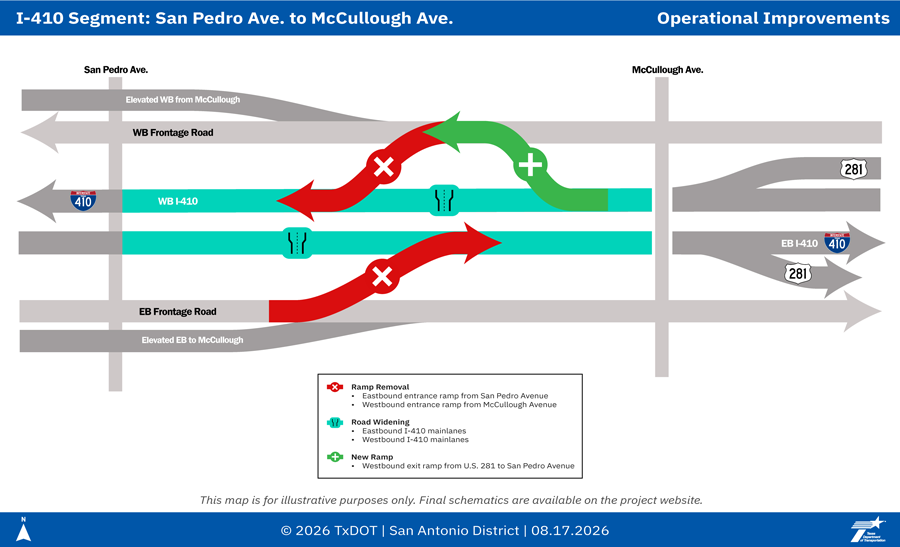

Loop 410 from San Pedro Ave. to McCullough Ave.

Map showing proposed improvements along I-410 from San Pedro Avenue to McCullough Avenue, including ramp removals, roadway widening and a new westbound exit ramp from U.S. 281 to San Pedro Avenue.

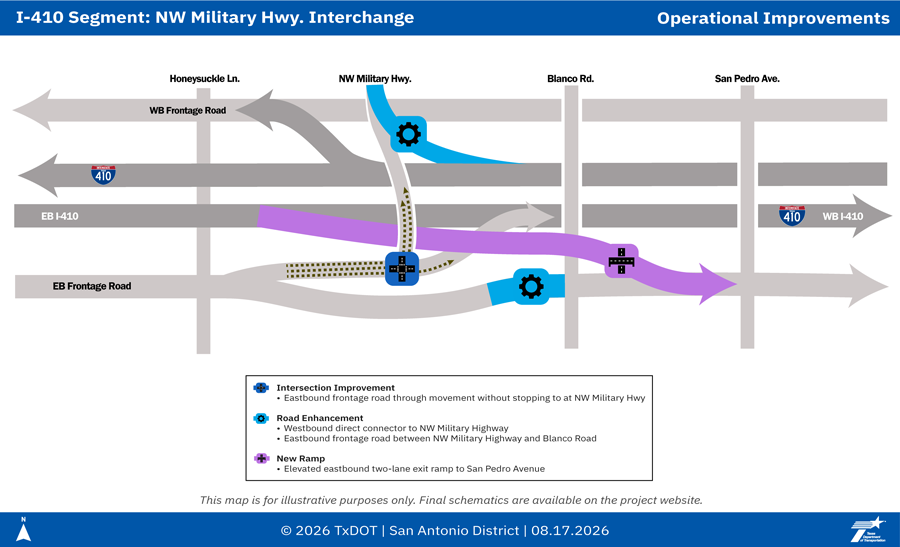

Loop 410 at N.W. Military interchange

Loop 410 from West Ave. to N.W. Military Highway

Map showing improvements along I-410 from West Avenue to NW Military Highway, including ramp removals, new ramps and ramp enhancements to improve traffic flow.

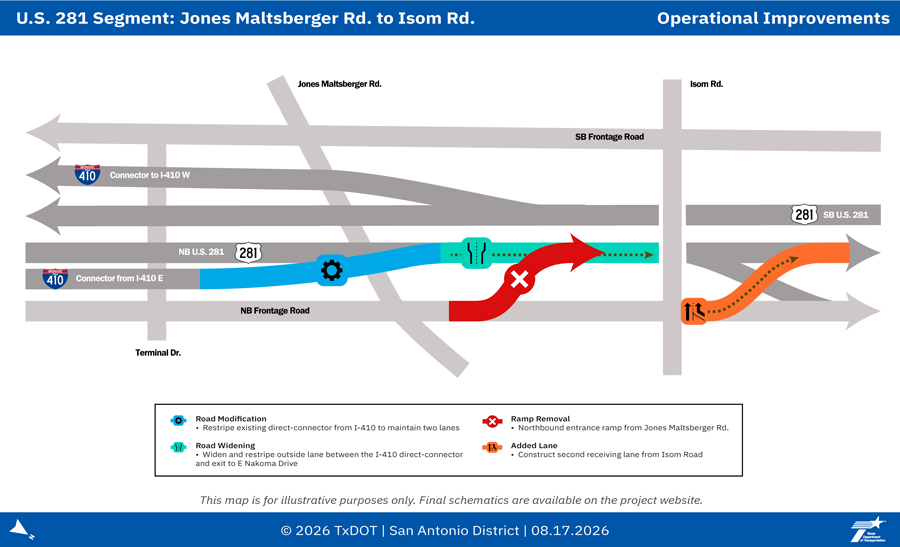

US 281 from Jones Maltsberger Rd. to Isom Rd.

Map showing proposed improvements along U.S. 281 from Jones Maltsberger Road to Isom Road, including roadway modifications, ramp removal, widening and an added lane from Isom Road.

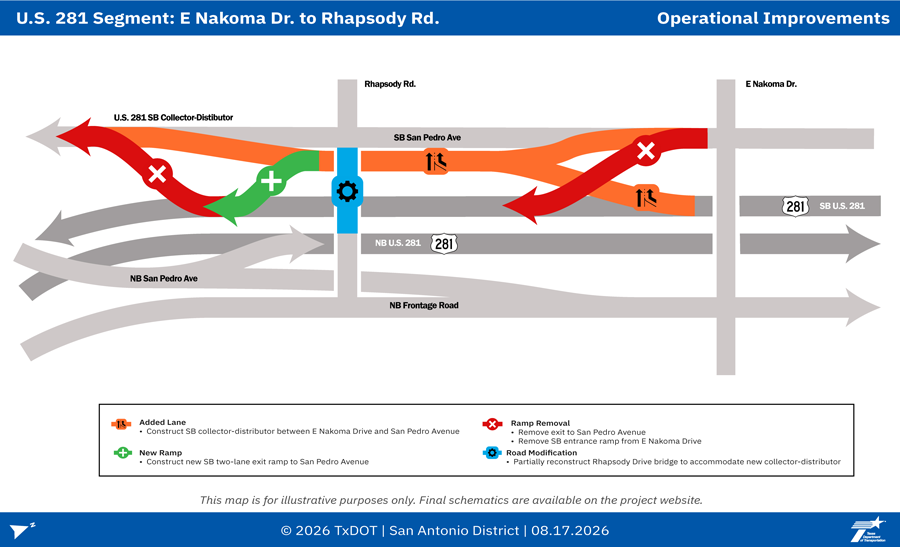

US 281 from E. Nakoma Drive to Rhapsody Drive

Map showing improvements along U.S. 281 from East Nakoma Drive to Rhapsody Road, including added lanes, ramp removals, new ramps and roadway modifications.
