Section 7: Pole Placement Guidelines
Introduction
This section contains guidelines for the placement of conventional
lighting poles in relation to other roadway elements. These guidelines
apply to all designated routes, whether the poles are installed by
construction contract, state forces, municipalities, or others.
Clear Zone
The clear zone, or clear recovery area, is provided along highways to allow vehicles veering off the travel lane opportunity for safe recovery or stopping. The clear zone width (always measured from the edge of the travel lane) depends on several factors, including:
- whether the surrounding area is rural or urban
- the functional classification of the highway
- the design speed
- average daily traffic (ADT).
The contains a full discussion of the clear zone and provides the minimum and desirable widths for various roadways.
Light poles should be offset at least 2.5 feet from the curb face. All pole offset dimensions shown in this section are measured to the pole centerline.
The clear zone table from the
Roadway Design Manual
is duplicated in Chapter 10 of this manual.House Side vs. Median Mounting
“House side mounting” refers to the placement of luminaires
between the curb and right-of-way line.
“Median mounting” refers to placement on open medians or medians
with concrete traffic barrier.
Two Types of Poles
There are two types of poles used for conventional lighting:
non-breakaway and breakaway. Non-breakaway poles are rigidly mounted,
usually remaining upright when hit by a vehicle. Breakaway poles
are designed so that the base will shear easily on impact. The table
below briefly explains the advantages and disadvantages of both
types when struck by an errant vehicle.
Type of Pole | Advantage | Disadvantage |
---|---|---|
Non-Breakaway | Normally does not fall down
and cause further damage to surrounding people and property. | Likelihood of greater injury
to occupants and damage to vehicle. |
Breakaway | Less likelihood of damage to
impacting vehicle and injury to occupants. | Falling pole may be hazard to
surrounding pedestrians, traffic, or property. |
Breakaway Poles Preferred
Because of their respective advantages and disadvantages,
both types of poles have appropriate uses. However, unless special
circumstances exist, breakaway poles are preferred over the non-breakaway
type.
When Not To Use Breakaway Poles
Breakaway poles should not be used in situations where they
are more hazardous than non-breakaway poles and situations in which
the breakaway feature would be useless. Breakaway poles are not
normally used if:
- substantial pedestrian traffic is expected in the area
- a falling pole could cause more damage than that caused by an automobile striking a rigid pole
- overhead electric lines are too close
- the pole is mounted atop a concrete traffic barrier
- the pole is mounted behind a metal beam guard fence (see following discussions on “Protection of Non-Breakaway Poles” and “Placement of Non-Breakaway Poles”).
Other considerations frequently come into play. The preceding
list is provided only as an overview.
Protection of Non-Breakaway Poles
When a non-breakaway pole is used inside the clear zone, it
must be protected from traffic. Acceptable methods of protection
include mounting the pole:
- on a concrete traffic barrier
- behind a metal beam guard fence or other non-yielding structure.
Curbs are not considered adequate protection for non-breakaway
poles.
Placement of Non-Breakaway Poles
Generally, non-breakaway roadway lighting poles may be used
on the house side of roadways when placed outside of the clear zone
or inside the clear zone when protected from impact.
Non-breakaway poles should be placed as close to the right-of-way
line as lighting design and practicality permit. Wherever possible,
non-breakaway poles should be placed among other nonyielding structures
to minimize the hazard.
If non-breakaway poles are used and are not protected, the
poles must be outside the clear zone and as close to the right-of-way
line as possible subject to good lighting design practice.
Non-breakaway poles mounted behind metal beam guard fence
should be placed at least 2.5 feet behind the guard fence
to
allow for deflection of the guard fence if hit
.Joint usage of poles is encouraged to reduce roadside clutter
and the number of fixed objects along the roadside. When lighting
is provided at signalized intersections and when conditions permit,
the luminaires should be mounted on the traffic signal pole. Note
that luminaires mounted on traffic signal poles should be powered
from the signal electrical service.
Luminaires mounted on traffic signal poles should be oriented
perpendicular to the centerline of the roadway being lighted.
Falling Area for Breakaway Poles
To understand the use and placement of breakaway poles, it is important to understand the concept of “falling area.” Research shows that most errant vehicles striking light poles are traveling at an angle less than 20 degrees from their original path and that light poles fall within one mounting height from the foundation along the direction of vehicle travel. A breakaway pole falls within 2/5 (40 percent) of its mounting height in a direction perpendicular to and away from the lane in which the errant vehicle was traveling (see Figure 6‑3, “Falling area — final position of 50 feet luminaire support.”) Therefore, to prevent knocked down poles from encroaching onto other traffic lanes, breakaway poles should be placed so that they have a falling area of at least 2/5 of the mounting height behind the poles and one mounting height on the side of the pole.
EXAMPLE: In Figure 6‑3, the falling area is calculated as follows:
2/5 × 50 ft. mounting height = 20 ft. falling area

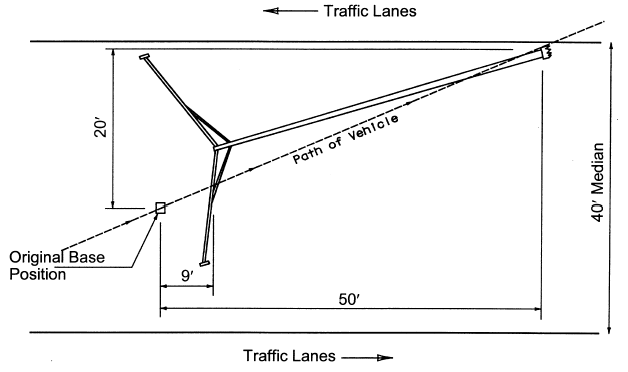

Figure 6-3. Falling area - final position of 50 foot luminaire support.
Use and Placement of Breakaway Poles
Unprotected roadway lighting poles located inside the clear
zone should be breakaway, unless conditions dictate otherwise.
Breakaway poles placed on the house side of freeways should
be 15 feet from lane edge and should provide a clearance behind
the pole of 2/5 of the mounting height. For highways other than
interstates, breakaway poles placed on the house side of travel
lanes should be 15 feet from lane edge where practical. If sufficient
right-of-way does not exist for this clearance, the poles may be
placed just inside the right-of-way line, but not closer than 2.5
feet from lane edge.
House Side Lighting
For house side lighting, the poles should be located as far from the shoulder edge as practicable. Generally, the minimum should be 15 feet from the lane edge.
Figure 6-4 shows typical house side lighting of a controlled access roadway with a median less than 30 feet wide. If the median width were 30 feet or greater, then median lighting could be used.

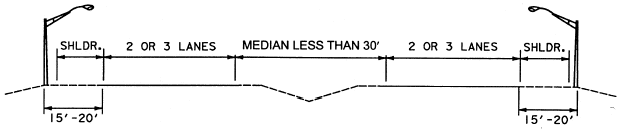

Figure 6-4. Typical house-side lighting for controlled access highway. In this example: Luminaires are 250W EQ LED - Mounting Height is 40 feet. - Spacing varies (see Section 6 of this chapter, "Spacing of Light Poles).
Median Lighting
Breakaway poles placed in medians should not be closer than
2/5 of the mounting height from either main lane edge. Breakaway
poles should not be placed in medians less than 30 feet wide, except
as noted in the following paragraph.
Median lighting in narrow medians should be avoided. If no
other alternative is possible, an exception may be made for divided
city streets with curbed medians, speed limit of 45 MPH or less,
and where pedestrian traffic allows the use of breakaway poles.
In this situation, breakaway poles may be used if placed at least
2.5 feet from any curb face, the pole height should not exceed 30
feet and pole mast arm lengths should not exceed 4 feet. Light poles
should not be installed in urban median areas less than 30 feet
wide if any other design is practical.
The turning lane of a divided city street may be included
as part of the median width when determining the falling area. Remember,
though, 2.5 feet offset from curb face should be maintained.
Breakaway poles placed in city street medians should also
be placed at least one mounting height back from the end of the
median at intersections.
Non-breakaway poles should not be placed in medians unless
properly protected.
Median Lighting Design Examples
The following illustrations show typical median lighting designs for various controlled access roadway sections.
Example 1 — Unprotected Median:
Figure 6‑5 shows a typical median lighting design for a controlled access roadway having an unprotected median 30 feet or greater in width. Here breakaway poles should be used.

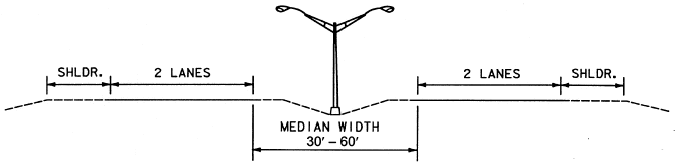

Figure 6-5. Median lighting with breakaway poles.
Where median width exceeds 60 feet, it may be necessary to treat each main lane as a separate roadway, using two rows of poles in the median or house side (see Figure 6-4 for illustration of house side lighting).
Example 2 — Concrete Median Barrier:
Figure 6‑6 shows a typical median lighting design for a controlled access roadway having a concrete median barrier. Median width in this situation is typically 20 feet.

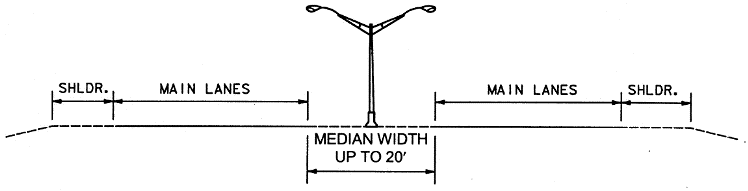

Figure 6-6. Median lighting with concrete median barrier.
The following table shows the recommended lighting for concrete median barriers.
Number of Lanes | Luminaires | Mounting Height | Spacing |
---|---|---|---|
2 or 3 each direction | 250W EQ LED | 40 feet | varies |
4 or 5 each direction | 400W EQ LED | 50 feet | varies |
Avoid Channelizing Islands
Avoid placing lighting poles in channelizing (dividing) islands,
as the falling area of the pole is difficult to obtain except in
cases where the island is very large.
Breakaway Pole Placement Examples
Figure 6-7 and Figure 6-8 show examples of breakaway pole placement and respective minimum applicable distances recommended for each of the cases listed in the following tables.
Case No. | Case | Shown in |
---|---|---|
1. | Median-mounted poles or poles inside the clear zone of two separate roadways. | Figure 6-7 |
2. | Outside clear zone of frontage road, but inside the clear zone of main lanes. | Figure 6-7 |
3. | Outside clear zone of main lane, but inside clear zone of frontage road. | Figure 6-7 |
4. | Minimum distance from ramp. | Figure 6-7 |
5. | House side of frontage road. | Figure 6-7 |
6. | Minimum distance from overhead electric lines (OHE). | Figure 6-7 |
7. | City street intersection. | Figure 6-8 |

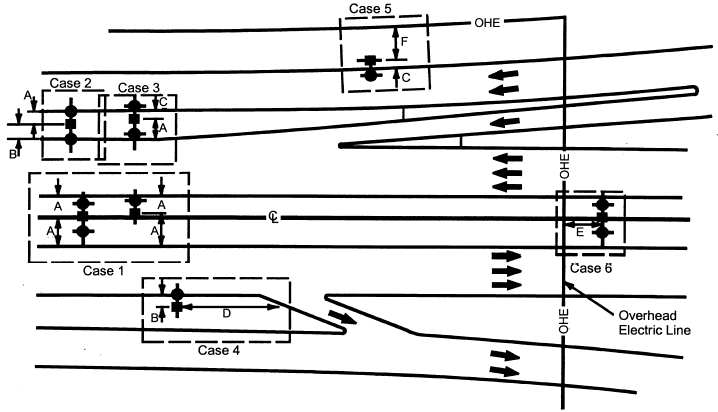

Figure 6-7. Controlled access facility illustrating example Cases 1 through 6. Minimum distances (designated here by the letters A through G) are shown in the table below.
(Indicated by Letter in this table and in Figure 6‑8) | ||||
---|---|---|---|---|
A. | 2/5 (40%) of one mounting height from edge of travel lane. | |||
B. | 15 feet from edge of travel lane (20 feet desirable). | |||
C. | Depends on whether or not the roadway is curbed or uncurbed and on the design speed (see following table). | |||
Pole Offset from Roadway | ||||
Distance from Curb Face or Lane Edge | ||||
Lane Edge | Design Speed | Desirable | Minimum | |
Barrier Curb* | 45 mph or lower | 10 ft. | 2.5 ft.** | |
Barrier Curb* | 50 mph or higher | 20 ft. | 15 ft.** | |
Uncurbed | 40 mph or lower | 15 ft. | 10 ft.** | |
Uncurbed | 45 mph or higher | 20 ft. | 15 ft.** | |
* Curbed roadway denotes a roadway with a 6-inch minimum barrier-type curb. All mountable-type curb is considered as uncurbed. ** or as near ROW line as practicable. | ||||
D. | One mounting height. | |||
E. | 20 feet, or as required by utility company. | |||
F. | 8 feet, or as required by utility company. | |||
G. | Clear zone. |

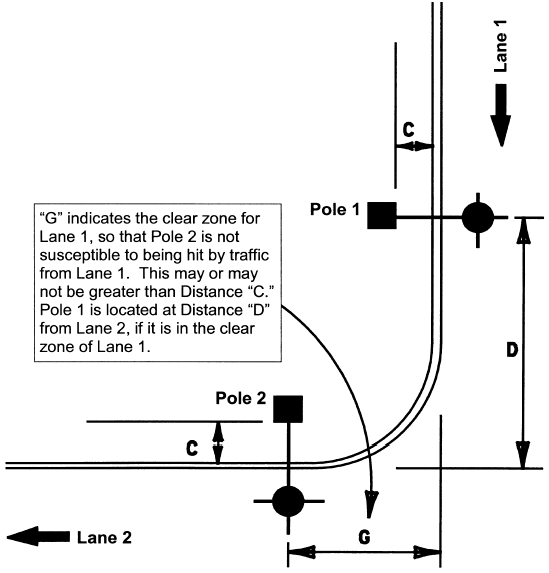

Figure 6-8. Example Case 7. Minimum distances (designated by letters) are shown in the preceding table.
Minimum Values
The distances shown and described in these guidelines as well
as the clear zone definitions are minimum values. Even though breakaway
poles may be placed in the clear zones, both breakaway and non-breakaway
lighting poles should be placed as far away from the roadway as
practical while maintaining the required light levels.
Poles in Sidewalks
The Americans with Disabilities Act (ADA) accessibility guidelines
(36 CFR, Part 1191) stipulate that public sidewalks, where provided,
must contain a continuous passage at least 36 inches wide. For this
reason, the placement of poles in sidewalks should be avoided. Where
such placement cannot be avoided, the sidewalk may need to be widened
around the pole to maintain the required passage.
Foundation Height
Foundations for luminaire supports should be set flush with
the ground line. Foundations placed on slopes should have the edge
closest to the travel lanes flush with the ground.
Striking Height
Tests have shown that breakaway luminaire supports may not
operate properly when the vehicle strikes the pole too high above
the ground. Breakaway poles should, therefore, not be placed in areas
where they are likely to be struck more than 28 inches above the
top of the foundation. Limiting the negative side slopes to 1:6
between roadway and luminaire supports should ensure acceptable
striking height.
Breakaway Pole Frangibility
, “Breakaway Light Poles,” provides a discussion of the frangibility requirements for breakaway poles.
