Section 4: Sign Height

Introduction

The proper sign height:
  • Improves the visibility of the sign, and
  • Provides appropriate safety performance.
Signs that are too low may not be visible to road users, particularly in heavy traffic. Likewise, signs that are too low may intrude into the vehicle compartment when struck.

Height of Signs and Sign Assemblies

Figures 4-15 through 4-22 on the following pages illustrate typical sign height situations.
Section 2A.18 and Figure 2A-2 of the 2011 Texas MUTCD
describe the height placement requirements for signs.

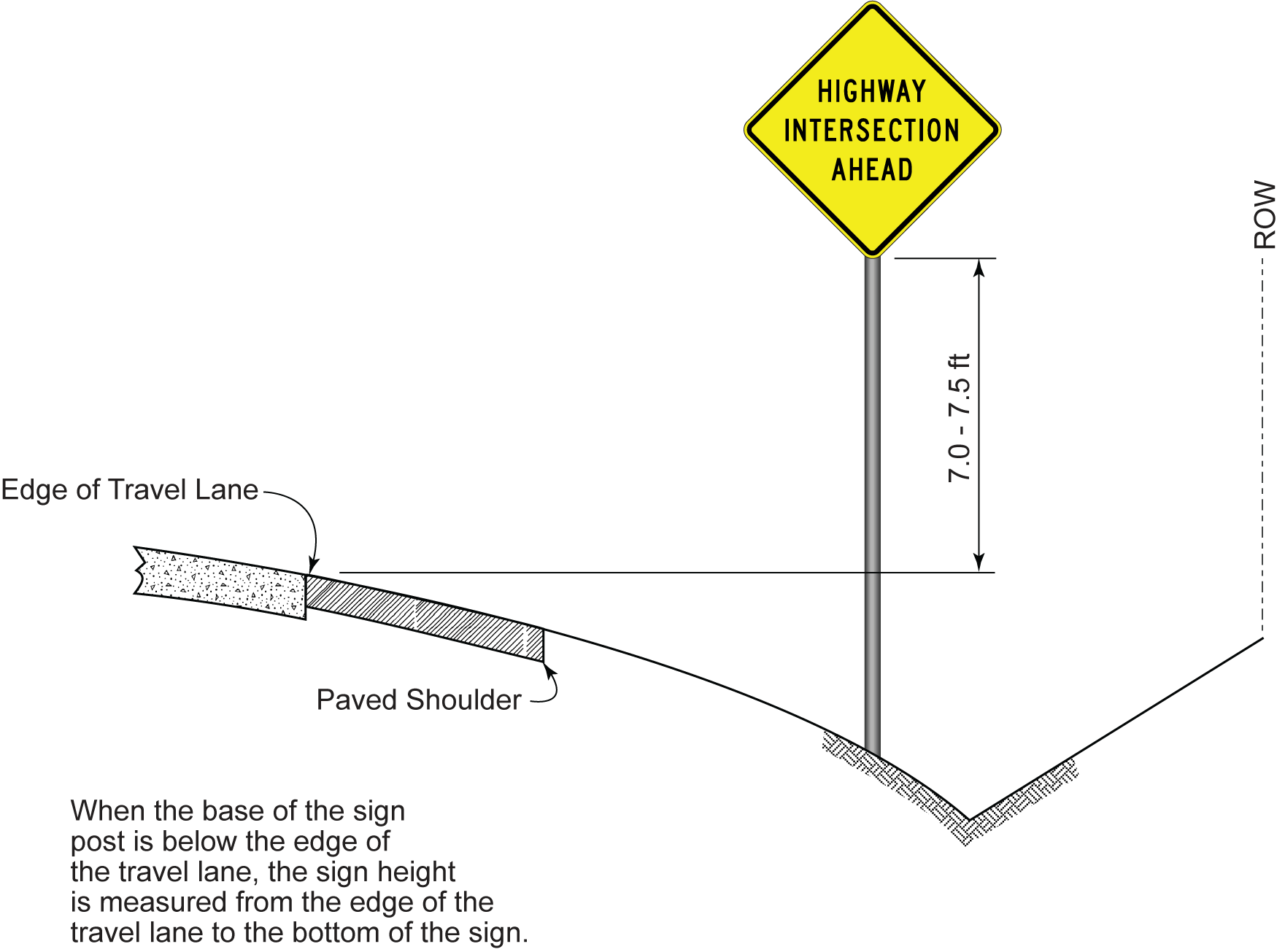

Sign Height on Front Slope (click in image to see full-size image)
Figure 4-15. Sign Height on Front Slope

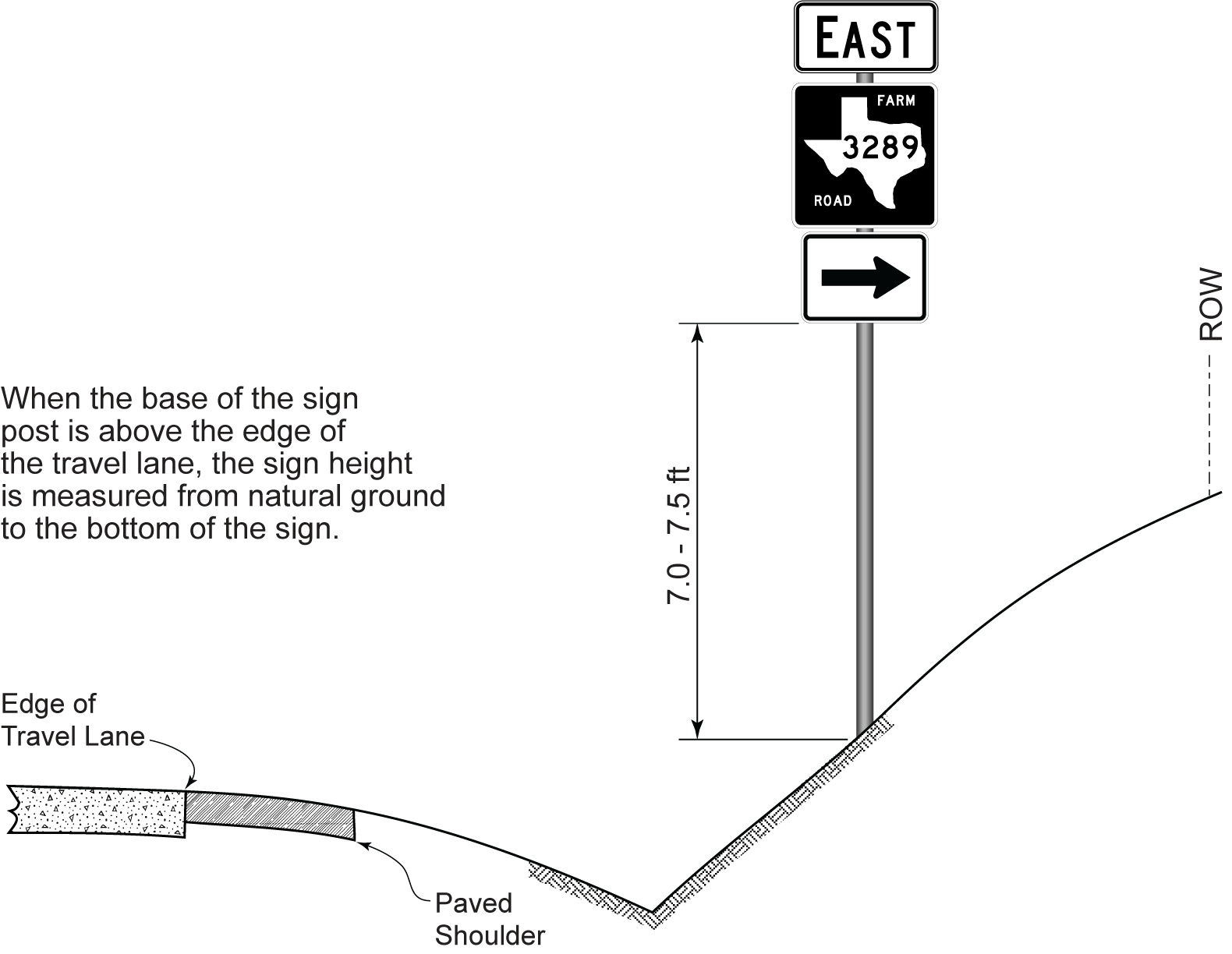

Sign Height on Back Slope (click in image to see full-size image)
Figure 4-16. Sign Height on Back Slope

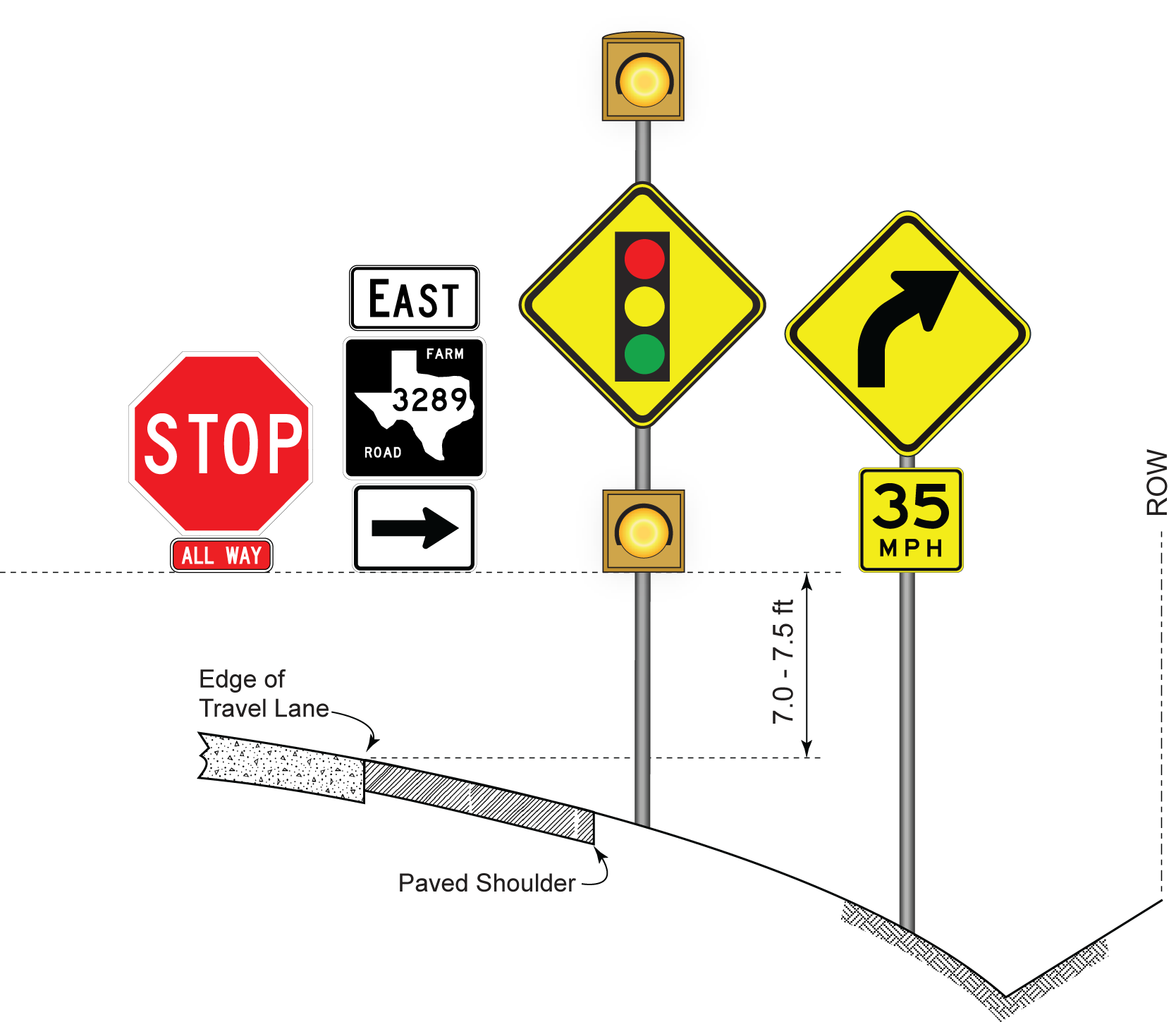

Sign Height for Installations with a SupplementalPlaque or Flashing Beacon (click in image to see full-size image)
Figure 4-17. Sign Height for Installations with a Supplemental Plaque
or Flashing Beacon

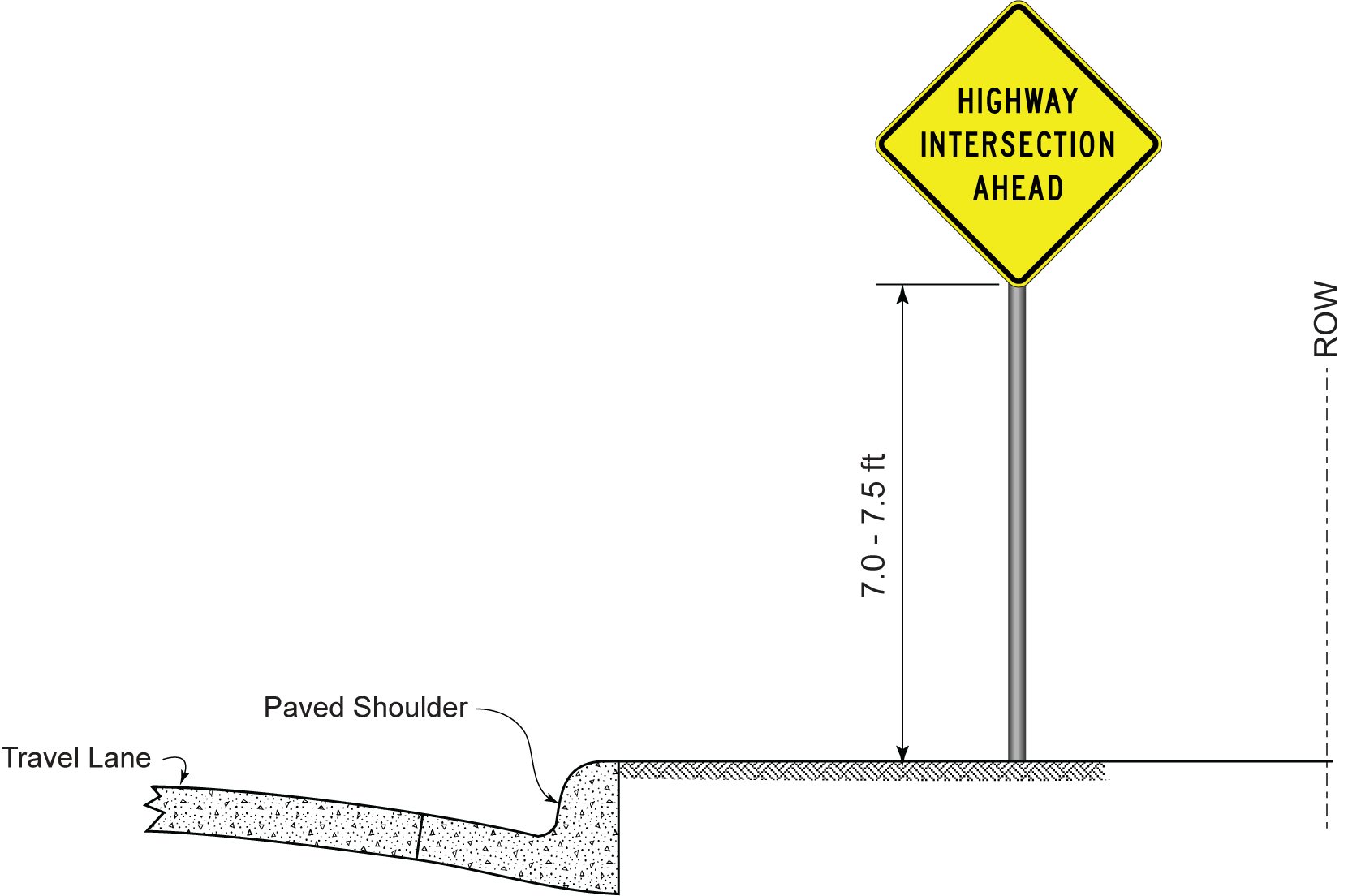

Sign Height on Curb and Gutter or RaisedIsland (click in image to see full-size image)
Figure 4-18. Sign Height on Curb and Gutter or Raised Island

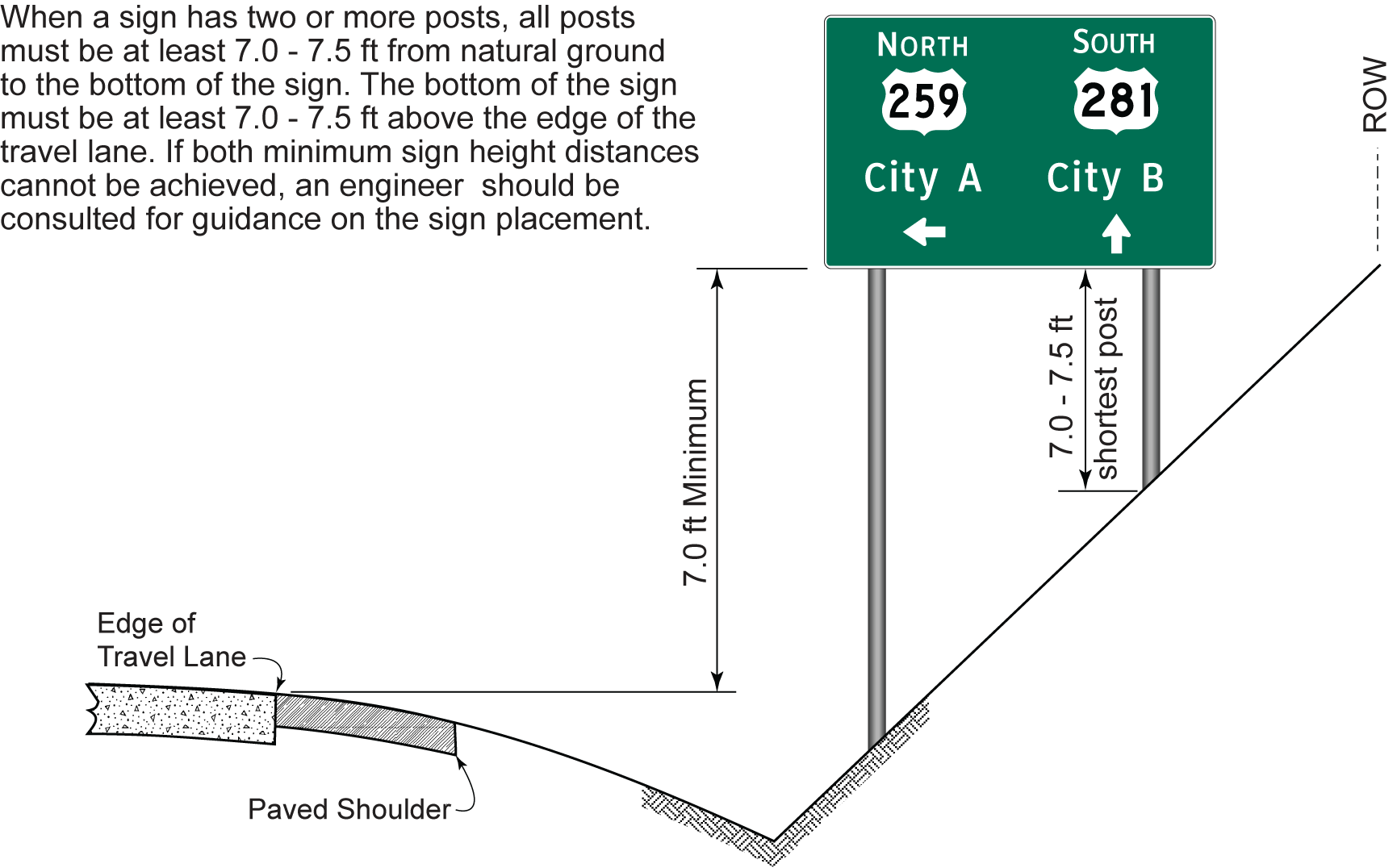

Sign Height for Large Sign with Two orMore Posts (click in image to see full-size image)
Figure 4-19. Sign Height for Large Sign with Two or More Posts

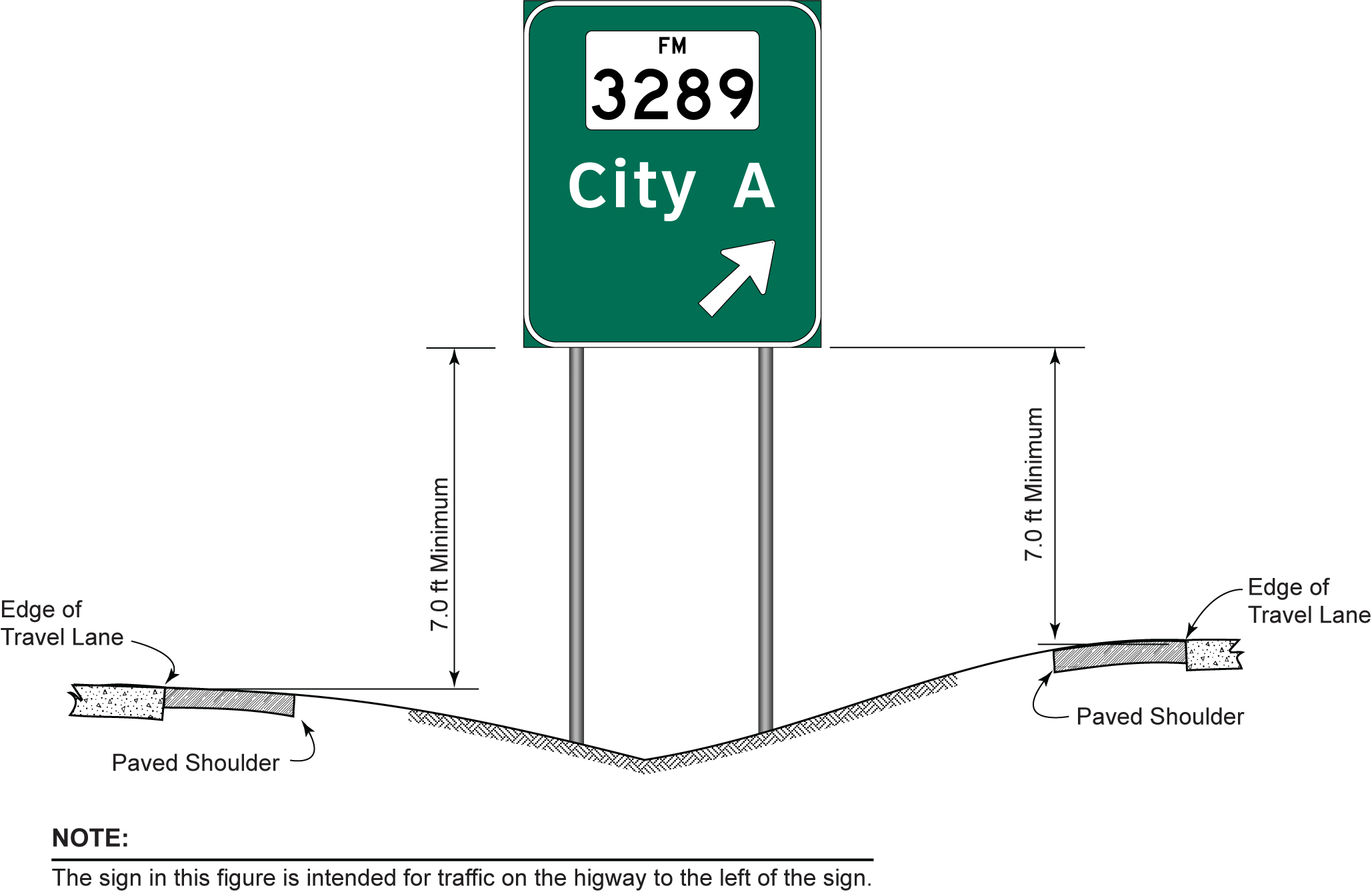

Sign Height between Main Lanes and FrontageRoads (click in image to see full-size image)
Figure 4-20. Sign Height between Main Lanes and Frontage Roads
Sign Height for Texas Reference MarkerAssembly (click in image to see full-size image)
Figure 4-21. Sign Height for Texas Reference Marker Assembly

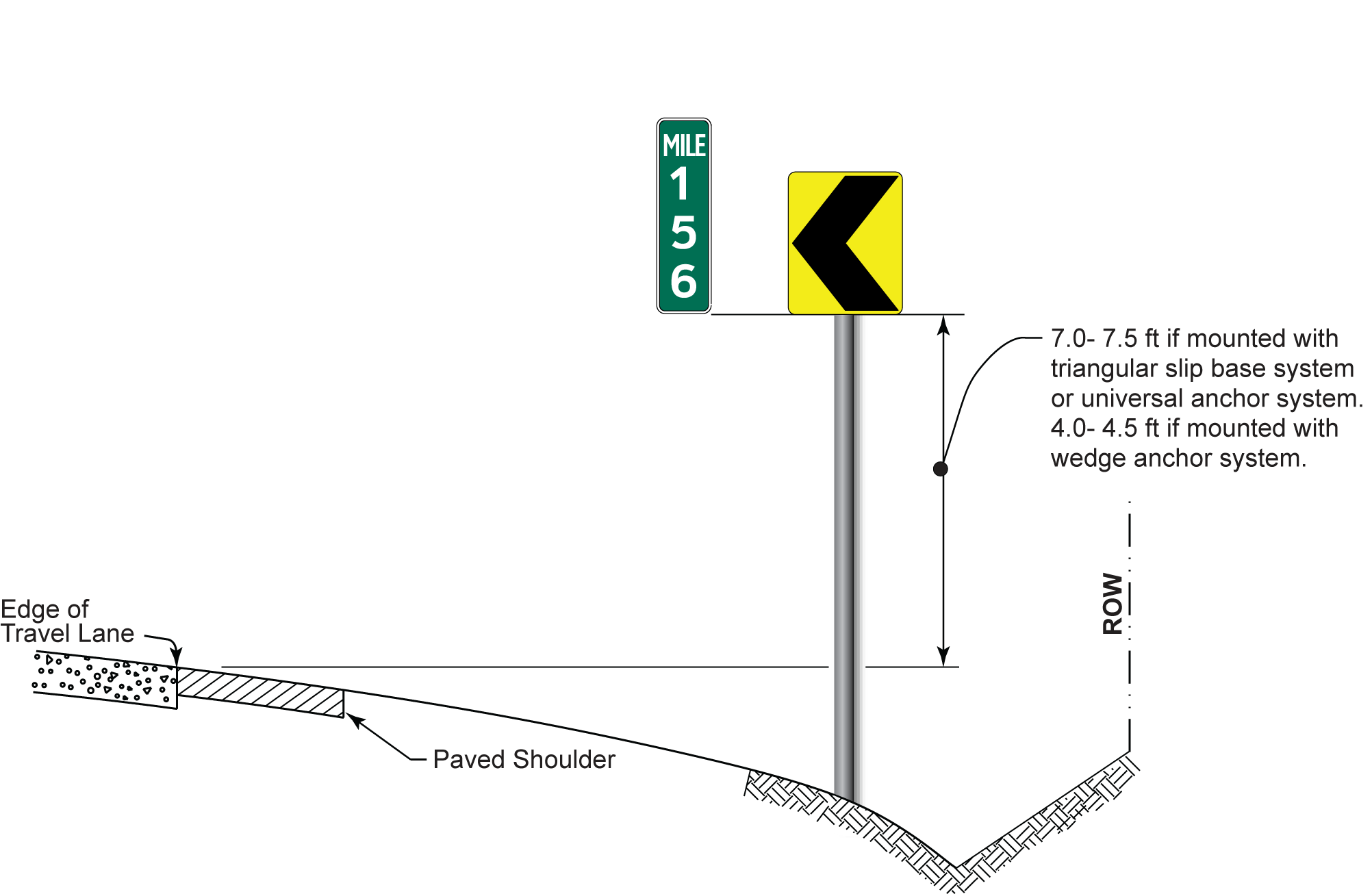

Sign Height for Reference Location Signsand Chevron Signs (click in image to see full-size image)
Figure 4-22. Sign Height for Reference Location Signs and Chevron Signs
