Cloverleaf Interchange Designs
Figure 5‑23 illustrates a full cloverleaf interchange with collector-distributor roads and where all traffic exiting the freeway exits at one location. Signing for typical approaches to a cloverleaf interchange with and without collector-distributor roads is illustrated in Figure 5‑24 and Figure 5‑25.
Figure 5-23. Cloverleaf interchange with collector-distributor roads.

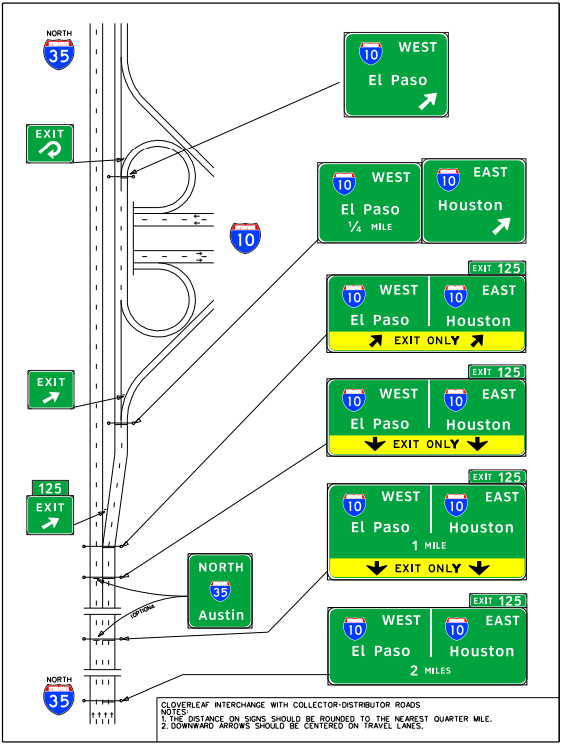

Figure 5-24. Signing for a typical cloverleaf interchange with collector-distributor roads.

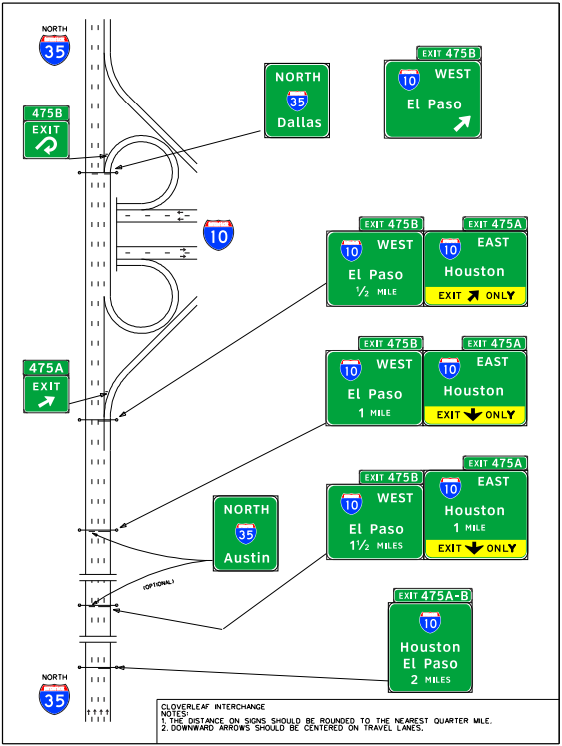

Figure 5-25. Signing for a typical cloverleaf interchange without collector-distributor roads.
