Section 6: V-Box Spreader

The V-Box Spreader is an attachment fora dump bed truck. It is used to accurately put out applicationsof de-icing materials on bridges and icy spots. These spreaderscan either be hydraulic or gasoline operated. (click in image to see full-size image)

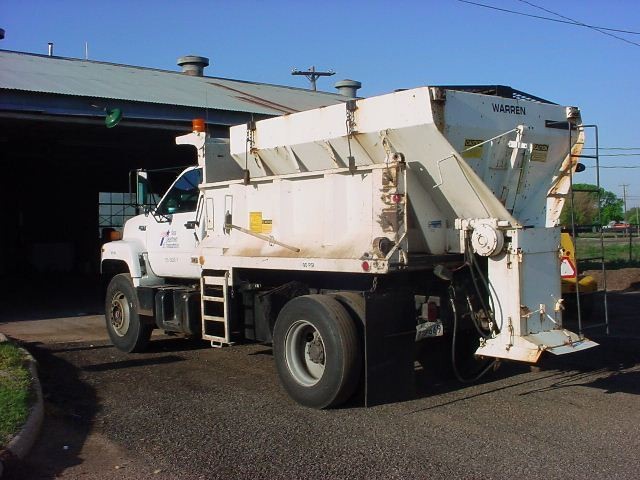

Figure 3-5. The V-Box Spreader is an attachment for a dump bed truck. It is used to accurately put out applications of de-icing materials on bridges and icy spots. These spreaders can either be hydraulic or gasoline operated.

Pre-storm activities

Well before a storm strikes, be sure to:
  • perform V-Box Spreader
  • on gasoline system check fuel, electrical, drive belt, fuel filters and engine oil
  • check spinner assembly (hinge rod and spinner disk)
  • check conveyor system (conveyor chain and belt)
  • check all hydraulics
  • check PTO and drive assembly or direct drive
  • calibrate equipment for specific desired.

During the storm activities

While using the equipment during a storm:
  • check for accurate dispersal of materials
  • perform a visual inspection of the equipment during operation to check for any problems (leaks, lights, etc.)
  • check oiler on belt for fluid level.

Post storm activities

Once the storm is over, be sure to:
  • remove material from spreader box and clean and wash thoroughly
  • check for leaks and wear on hoses (hydraulic system)
  • check fuel filter (on gasoline system) and make sure the equipment is ready for the next snow event
  • make sure all lights are operational on the spreader
  • check the conveyor system (belt and chain).
