7.3.2 Typical Section

Rural town arterial example typical sections are shown in
Figure 7-8
and
Figure 7-9
below. The geometric dimensions shown in these sections represent examples of different conditions and may be adjusted in accordance with
Section 7.1
.

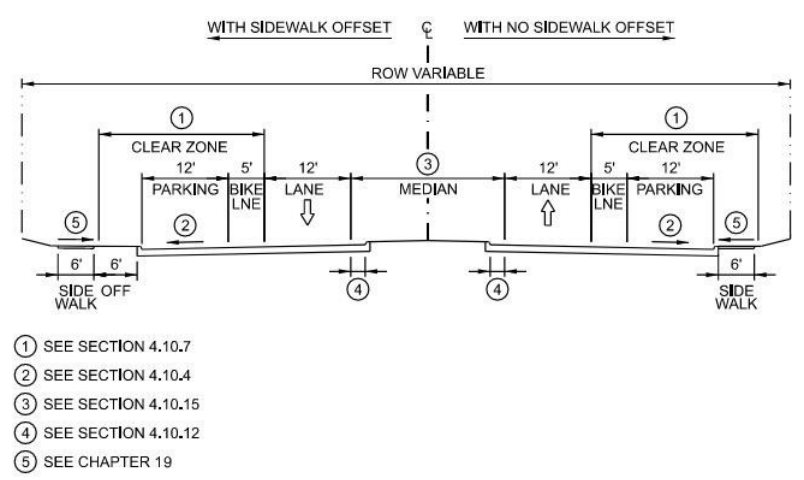

Rural Town Typical Section – Raised Median with Parking Lane ( click in image to see full-size image)
Figure 7-8: Rural Town Typical Section – Raised Median with Parking Lane

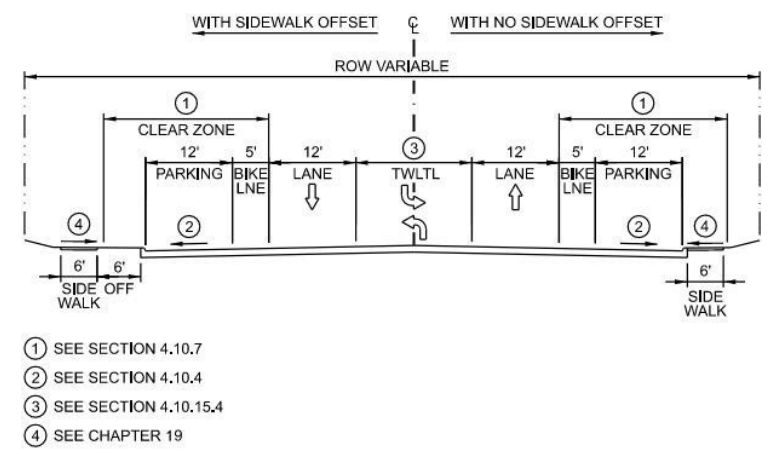

Rural Town Typical Section – Two-Way Left Turn Lane (TWLTL) with Parking Lane ( click in image to see full-size image)
Figure 7-9: Rural Town Typical Section – Two-Way Left Turn Lane (TWLTL) with Parking Lane
