Appendix C: Intersection Prioritization Tool Worksheet

Intersection Prioritization Tool
The intersection prioritization tool provided below was recreated from National Cooperative Highway Research Program (NCHRP) 3-62 research. The worksheets are a product of NCHRP 3-62 and are published in the Transportation Research Record, Journal of the Transportation Research Board, No. 1982, pp.13-20, entitled, "Development of an Intersection Prioritization Tool for Accessible Pedestrian Signal Installation". The intersection prioritization tool consists of two worksheets.
  • The
    Intersection Worksheet
     accounts for intersection characteristics and layout, signalization type, and location related to transit facilities, facilities for the visually impaired, and major pedestrian attractions.
  • The
    Crossing Worksheet
     accounts for the individual crossing characteristics. Each crossing at the intersection is rated based on several factors including:
    • Crossing width
    • Speed limit
    • Geometrics
    • Pedestrian signal control
    • Vehicle signal control
    • Off-peak traffic presence
    • Availability of alternative APS
    • Requests for APS installation.
The prioritization tool provides a method of scoring individual crossings for relative crossing difficulty to visually impaired individuals. This provides a method to compare crossings for priority for installation of APS systems. In general, if one crossing generates a high priority, it would be desirable to provide APS for all crossings at the intersection.
Detailed instructions on the correct method for filling out and completing the worksheets are available on the internet at
http://onlinepubs/nchrp/nchrp_w117a_appendix-d.pdf.
A print version of the prioritization tool worksheets is located on the following pages.
Intersection Priority Tool: IntersectionWorksheet (click in image to see full-size image)
Figure C-1. Intersection Priority Tool: Intersection Worksheet

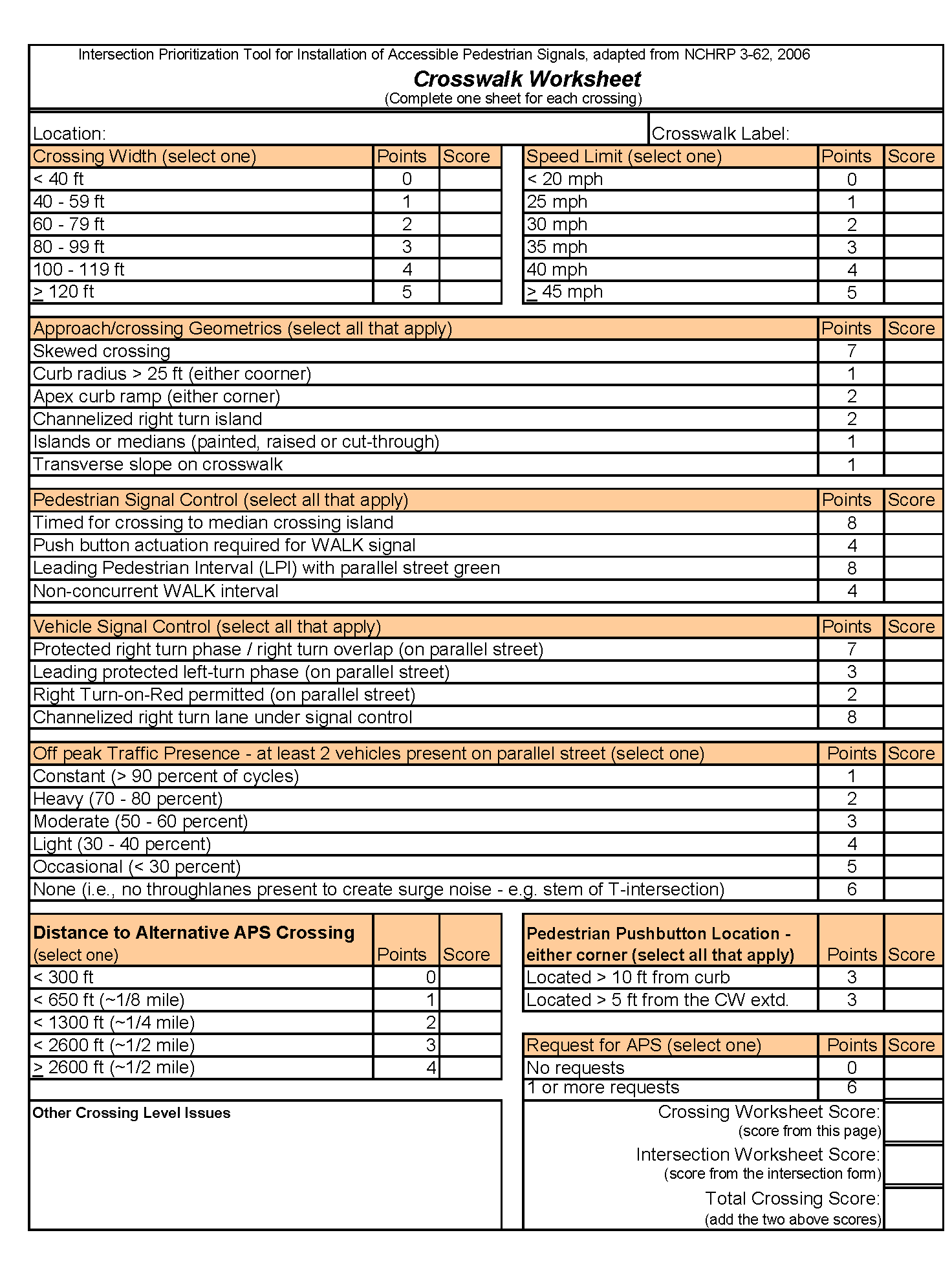

Intersection Priority Tool: Crosswalk Worksheet (click in image to see full-size image)
Figure C-2. Intersection Priority Tool: Crosswalk Worksheet
