Chapter 5: Application of Advisory Speeds

Section 1: Overview

Introduction

A discussion of the following types of advisory speeds is included in this section:
  • curves and turns
  • intersections
  • narrow and one-lane bridges
  • descending grades of six percent or greater
  • dips
  • exit ramps.

Advisory Speed Sign Posting

The W13-1 ADVISORY SPEED sign may be used in conjunction with any warning sign to indicate the maximum safe speed for passenger cars around a curve or through a hazardous location.
It must not be used in conjunction with any sign other than a warning sign, nor shall it be used alone.
The W13-1 sign shall always be mounted on the same post with and immediately below the warning sign to which it applies.

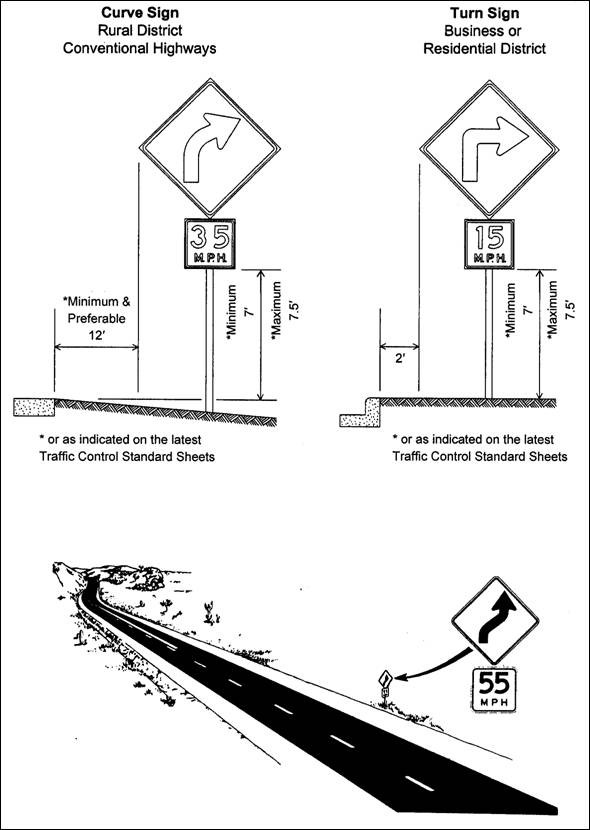

Figure 5-1 shows typical warning and advisory speed signing applications.
Typical height and location of warning andadvisory speed signs (click in image to see full-size image)
Figure 5-1. Typical height and location of warning and advisory speed signs
