Section 7: Destination and Distance Signing
Introduction
Destination signs (D1 series) provide guidance information in the form of a city name (destination) and the direction to the city. Destination signs are typically used in advance of intersections to help drivers decide which way to turn at the intersection.
Distance Signs (D2 series) indicate the distance to the city shown on the sign.
Destination and distance signs are especially valuable to motorists unfamiliar with a particular area. Because some motorists are inattentive, read maps poorly, or do not adequately plan their trips, additional destination and distance signs can help “pull” them through an area.
People familiar with an area often do not readily see a problem with destination signing. This section presents suggestions for handling situations that often present problems for motorists unfamiliar with an area.
Additional information on destination and distance signing can be found in the (TMUTCD) and the (SCFB).
Combination of Routes Between Major Destinations
When traversing a combination of routes between major cities
or destinations, motorists may find guide signing showing only route
numbers confusing. Sometimes maps, with their limited detail, may
also contribute to the disorientation.
Additional Distance Signing
Distance signs are normally used to advise motorists of distances
to destinations on a route. The destinations shown are selected
based on the guidelines in the TMUTCD,
.
Because many people navigate by destination names instead
of route numbers, distance signing for other major destinations,
in addition to that already in place, should be provided where applicable (subject
to the maximum text permitted by the TMUTCD). Also, as previously
discussed, trailblazing over a combination of routes for major destinations
may be necessary if the routes together serve as a primary connecting
link. Figure 7-4 shows an example.
Because such distance signing and trailblazing expands the
scope of normal distance signing, coordination with neighboring
district offices is necessary.
Spacing Additional Destination and Distance Signs
When additional destination and distance signs are required, the spacing between adjacent signs should be 300 feet minimum, with 400 feet desirable, on highways with 55 miles per hour or greater speed limits.

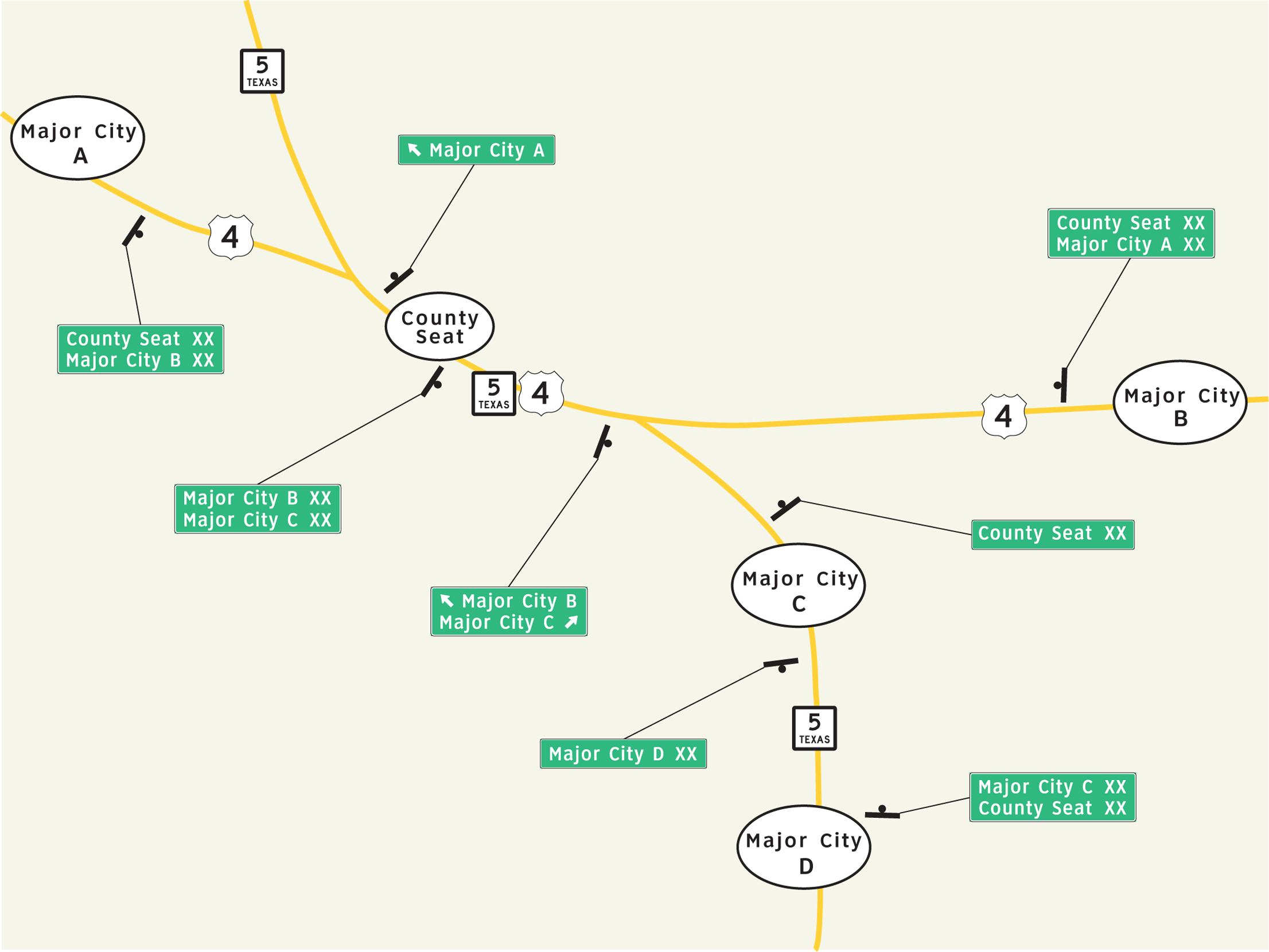

Figure 7-4. Example of supplemental destination distance signing
