Section 3: Lateral Placement at Intersections

Introduction

Figures 4-10 through 4-14 on the following pages illustrate additional lateral placement situations for Stop and Yield signs and other intersection-related situations.
Section 2B.10 and Figure 2A-3 of the Texas MUTCD
describe the requirements for the placement of Stop and Yield signs.
Stop/Yield Sign Lateral Placement at aChannelized Intersection (click in image to see full-size image)

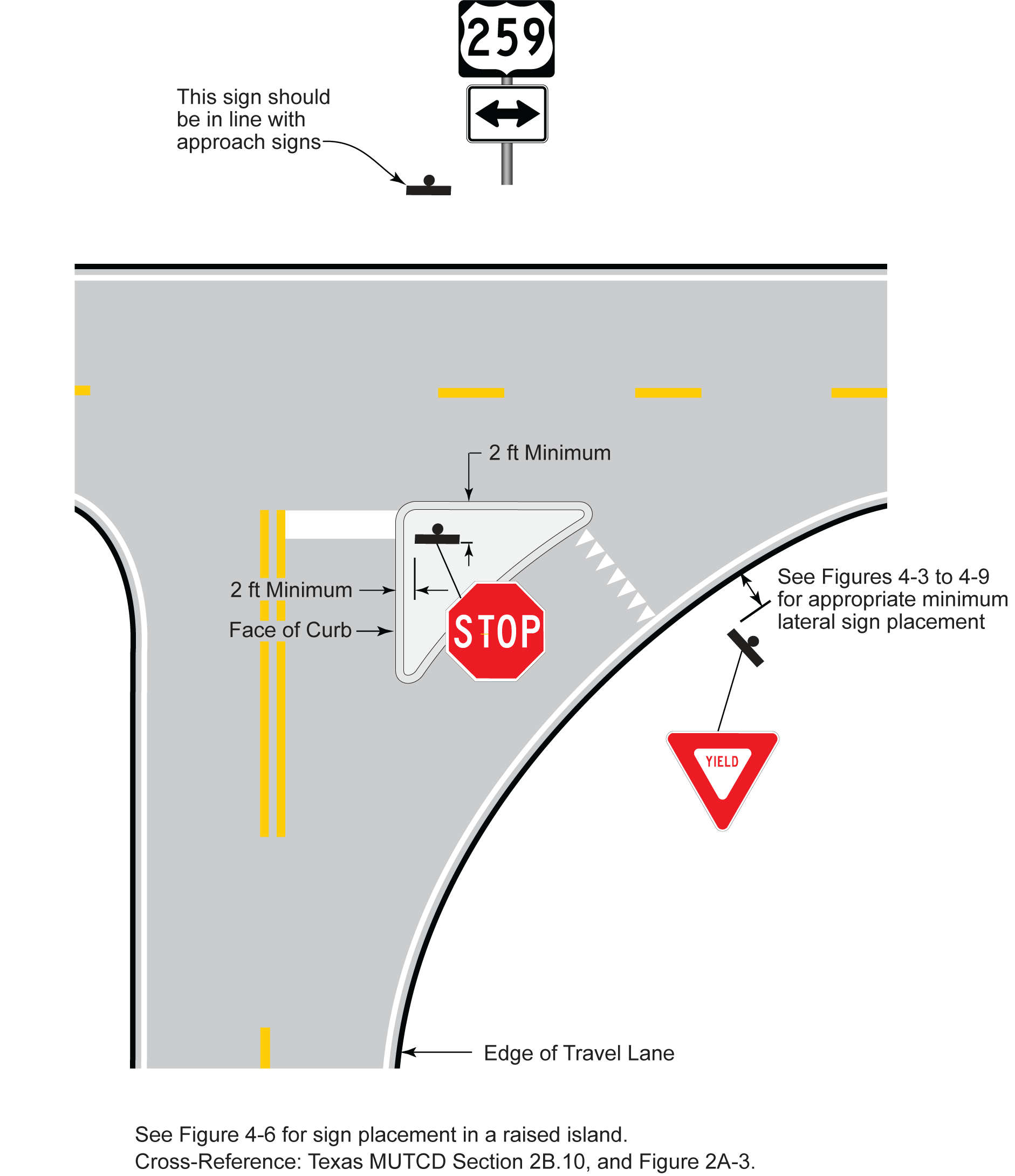

Figure 4-10. Stop/Yield Sign Lateral Placement at a Channelized Intersection
Stop/Yield Sign Lateral Placement at Intersectionwith Divisional Island (click in image to see full-size image)

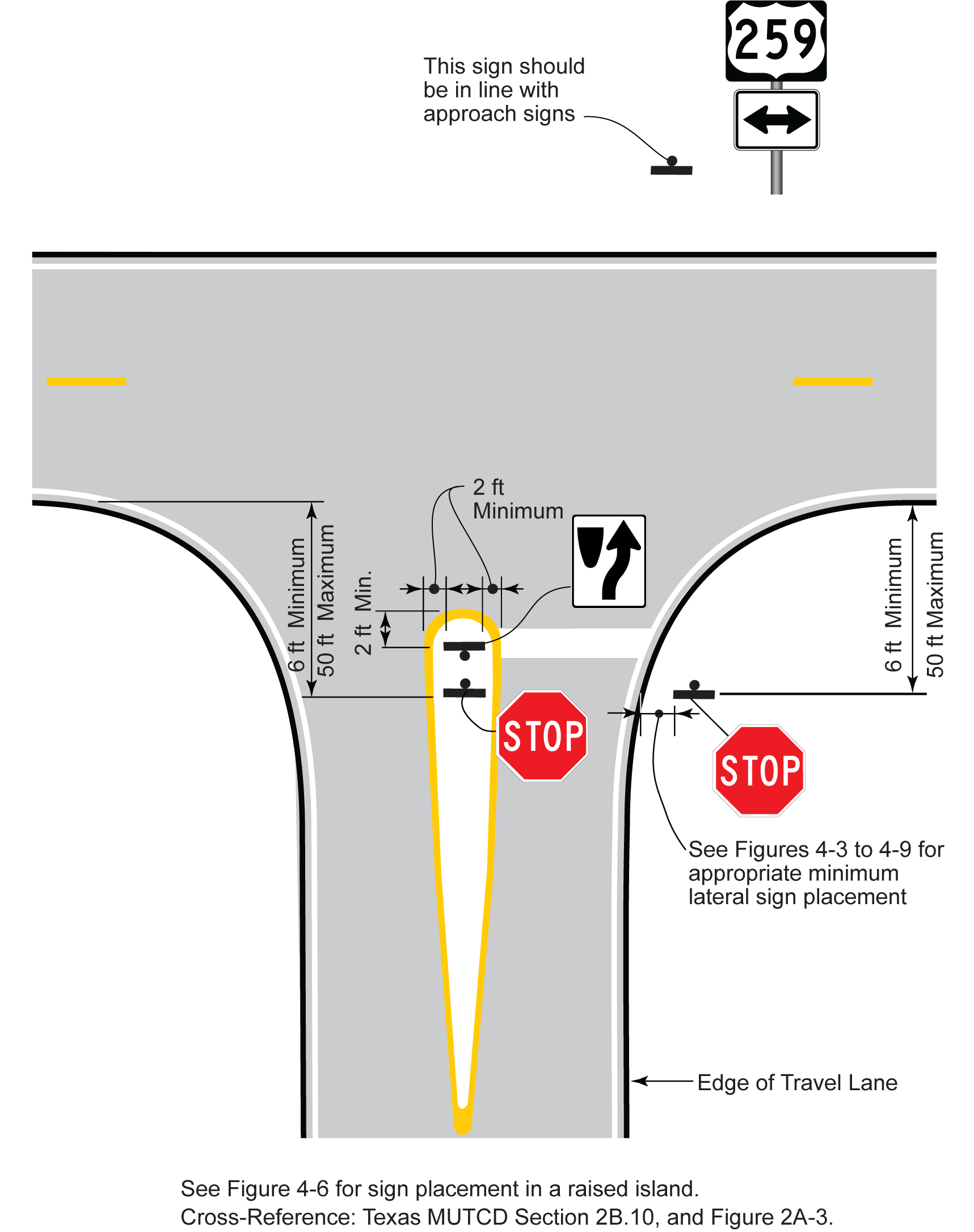

Figure 4-11. Stop/Yield Sign Lateral Placement at Intersection with Divisional Island
Stop/Yield Sign Lateral Placement at aWide-Throat Intersection (click in image to see full-size image)

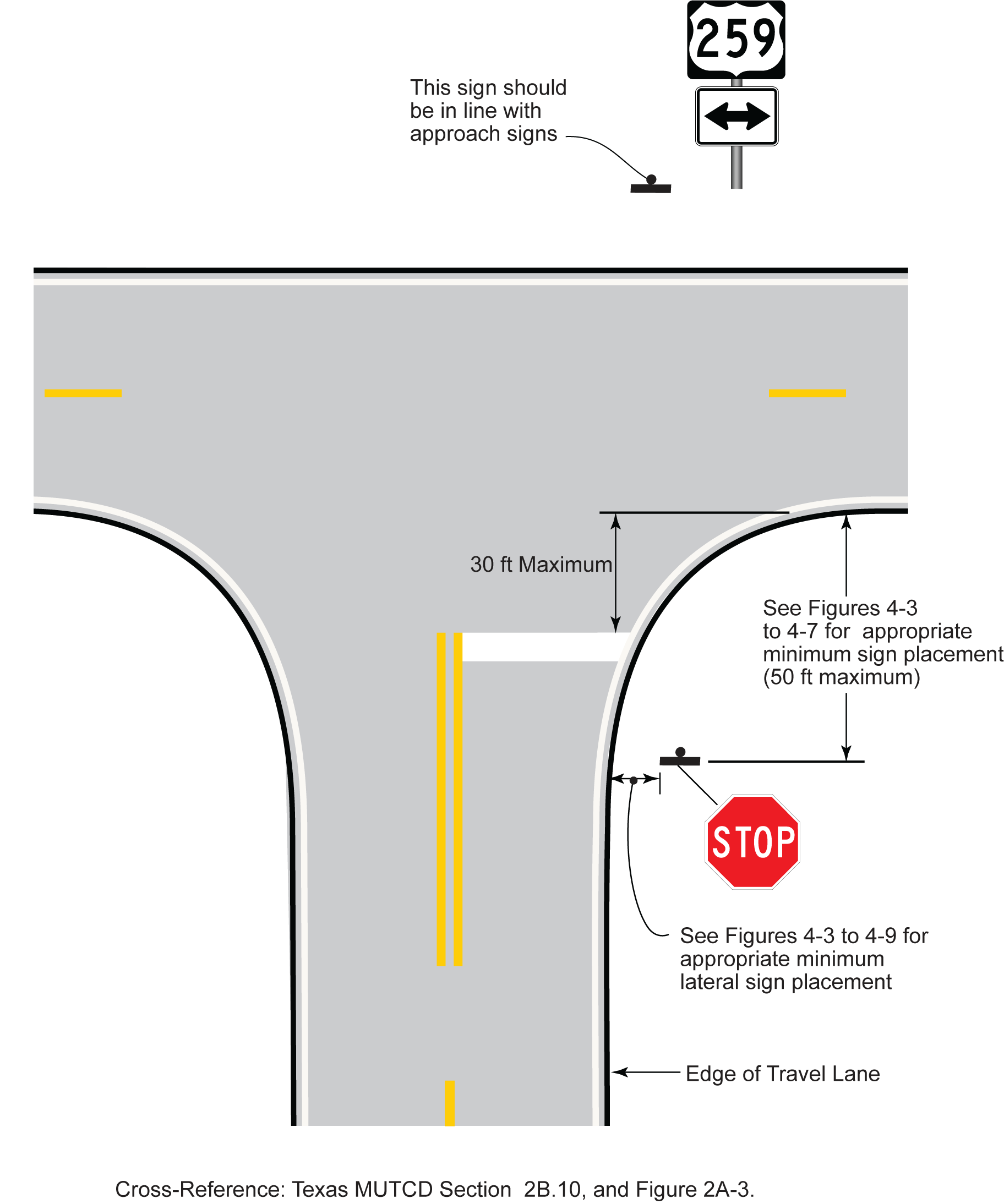

Figure 4-12. Stop/Yield Sign Lateral Placement at a Wide-Throat Intersection
Keep Right Sign Lateral Placement on aDivisional Island (click in image to see full-size image)

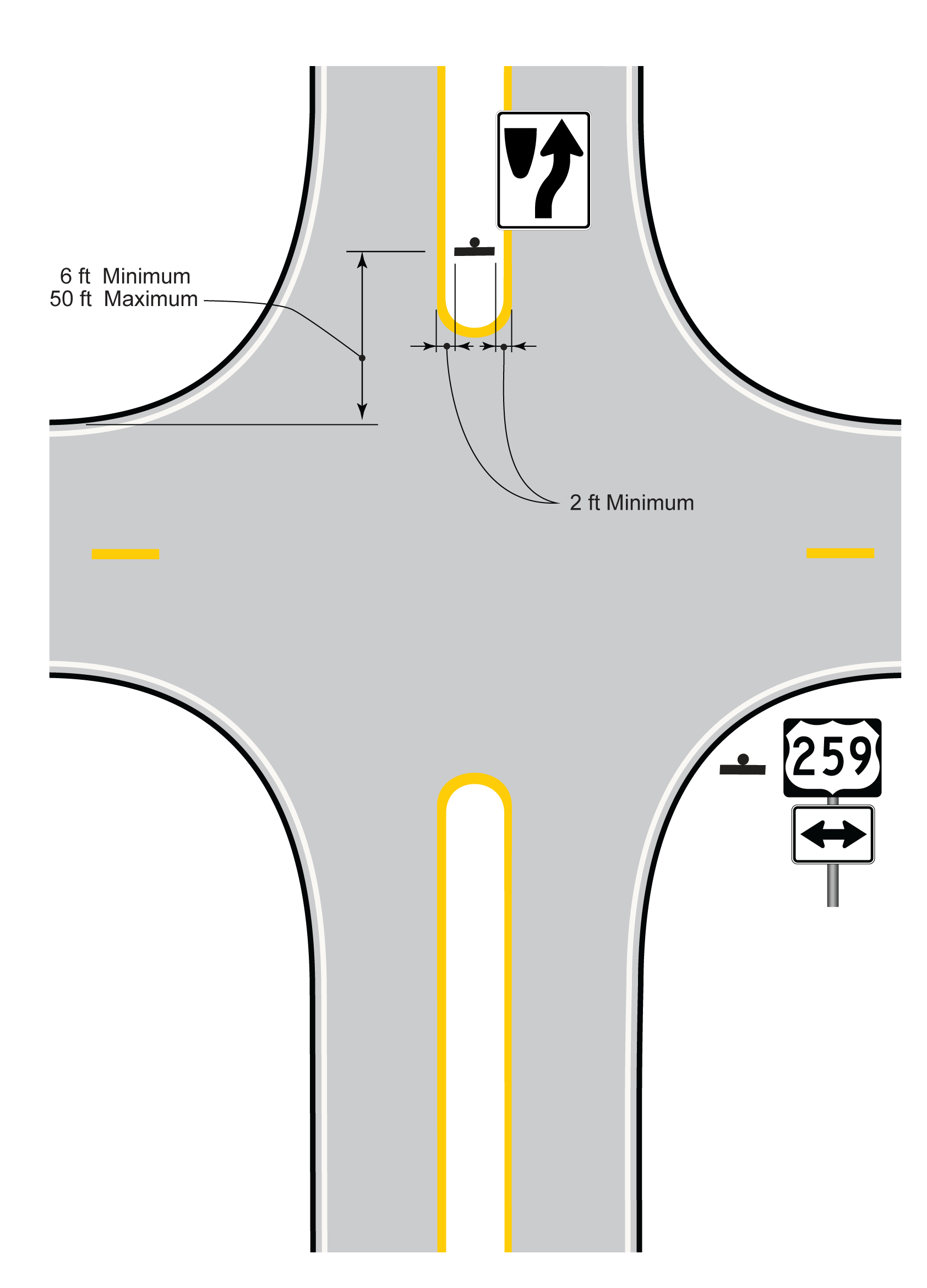

Figure 4-13. Keep Right Sign Lateral Placement on a Divisional Island
Placement of Large Arrow Panel (click in image to see full-size image)

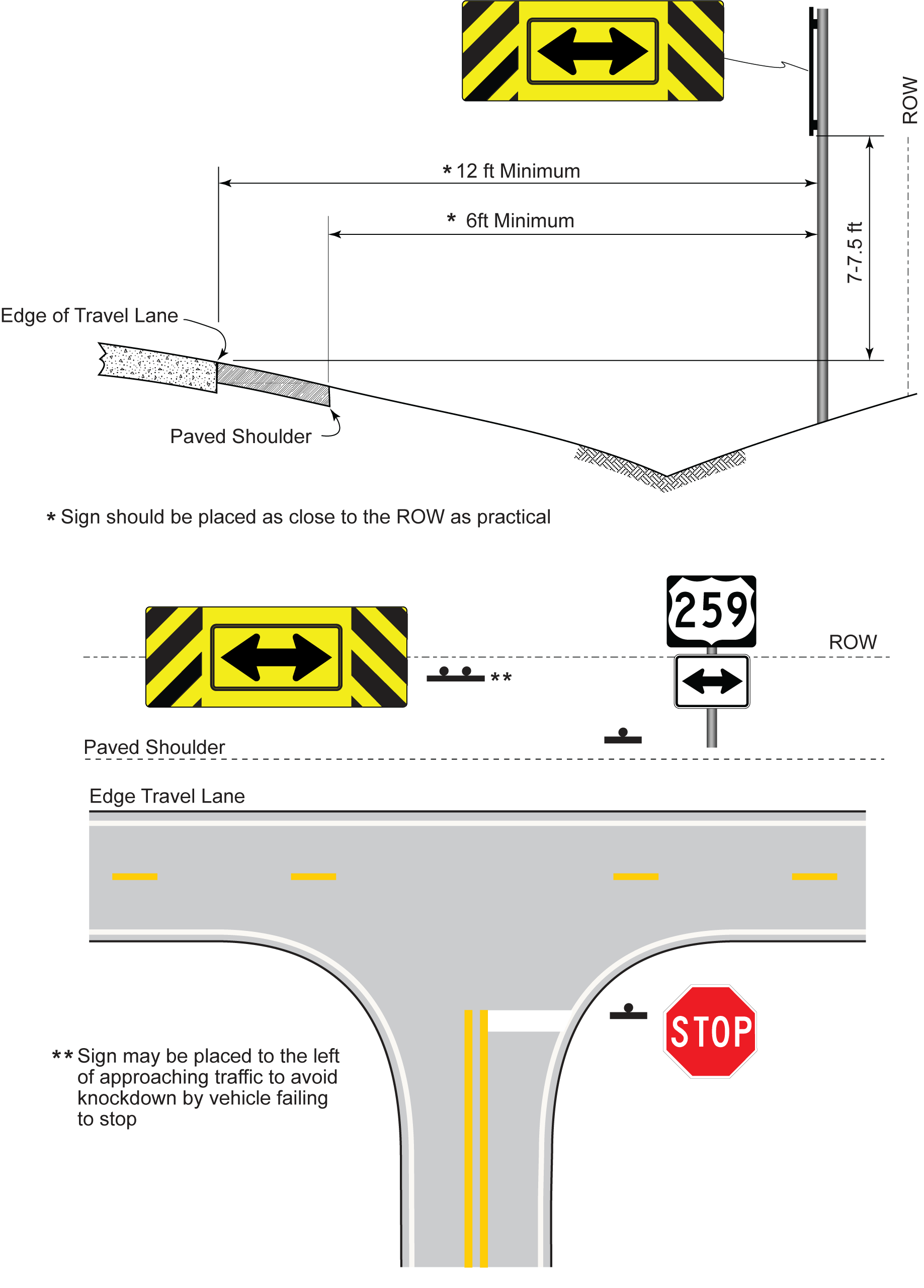

Figure 4-14. Placement of Large Arrow Panel
