Section 2: Lateral Placement

Introduction

Proper lateral placement of a sign:
  • Improves the visibility of the sign, and
  • Reduces the probability of the sign being hit by vehicles leaving the roadway.

Locating Sign Posts Close to One Another

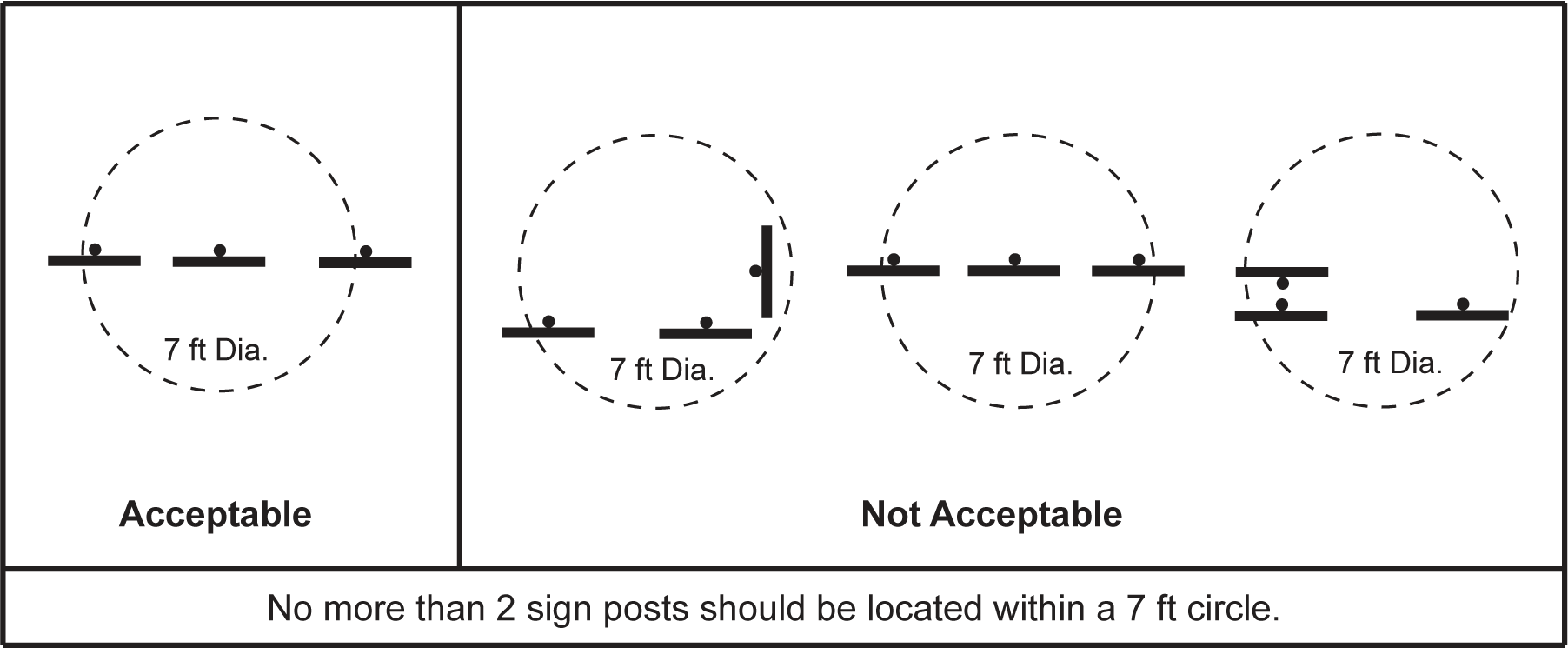

Figure 4-2 illustrates that no more than two sign supports should be located within a 7 ft circle.
Placement of Signs within a 7 ft Circle (click in image to see full-size image)
Figure 4-2. Placement of Signs within a 7 ft Circle

Lateral Placement

Highway cross-section is the primary criteria affecting the lateral placement of signs. The key cross-section factors affecting the lateral placement are whether a roadway has no shoulder, a narrow shoulder, a wide shoulder, guardrail, or curb-and-gutter.
The following define narrow and wide shoulders:
  • Narrow Shoulder:
    A shoulder that is 6 ft or less in width.
  • Wide Shoulder:
    A shoulder that is more than 6 ft wide.
Where possible, do not place sign posts in the flow line of a ditch or drainage channel.
Section 2A.19 and
Figure 2A-2 and 2A-3 of the Texas MUTCD
describe the lateral placement requirements for signs. Figures 4-3 through 4-9 on the following pages illustrate typical situations for the lateral placement of signs. Section 3 contains additional information about lateral placement of signs at intersections.
Lateral Sign Placement with No Shoulderor Narrow Shoulder (click in image to see full-size image)
Figure 4-3. Lateral Sign Placement with No Shoulder or Narrow Shoulder
Lateral Sign Placement with Wide Shoulder (click in image to see full-size image)
Figure 4-4. Lateral Sign Placement with Wide Shoulder
Lateral Sign Placement with Guardrail (click in image to see full-size image)
Figure 4-5. Lateral Sign Placement with Guardrail
Lateral Sign Placement with Curb and Gutter (click in image to see full-size image)
Figure 4-6. Lateral Sign Placement with Curb and Gutter
Lateral Sign Placement with Raised Island (click in image to see full-size image)
Figure 4-7. Lateral Sign Placement with Raised Island

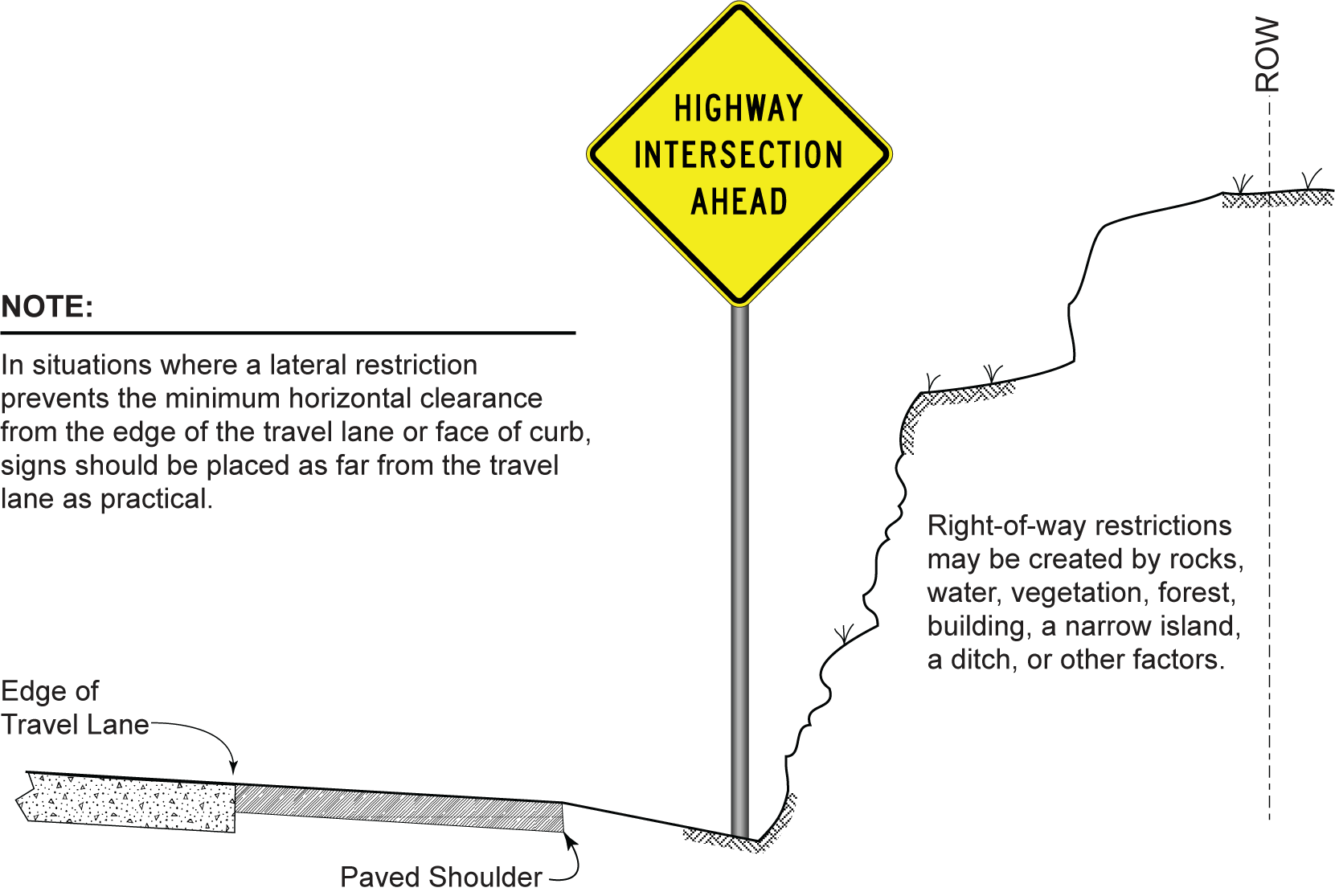

Lateral Sign Placement in Restricted Right-of-Way (click in image to see full-size image)
Figure 4-8. Lateral Sign Placement in Restricted Right-of-Way

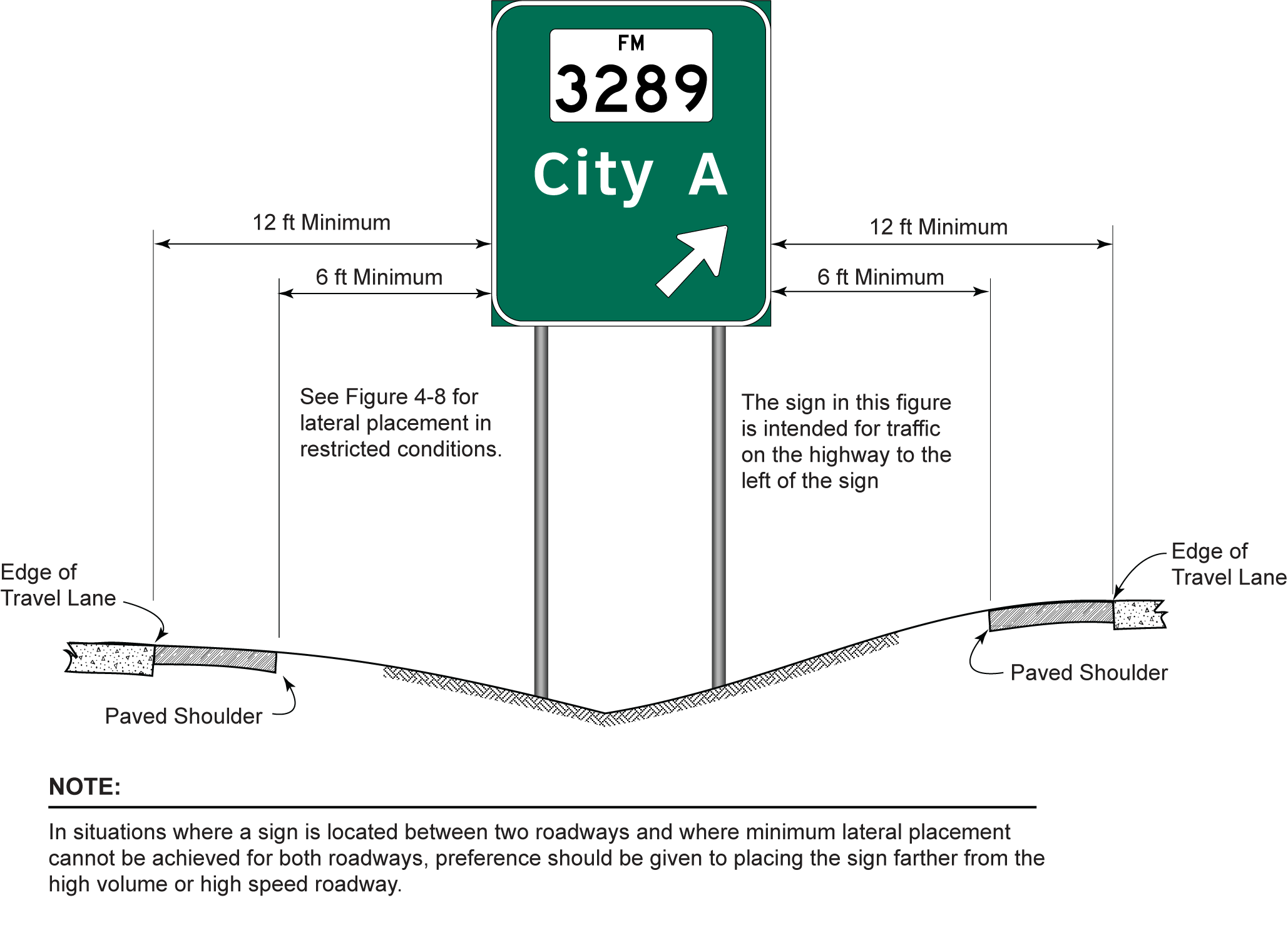

Lateral Sign Placement between Two Roadways (click in image to see full-size image)
Figure 4-9. Lateral Sign Placement between Two Roadways
