Merge and Diverge Lanes

For partial interchange lighting, the first light pole for merge and diverge lanes should begin at the end of the weave area and continue to within 50 feet of the painted gore, as shown in Figure 6-2.

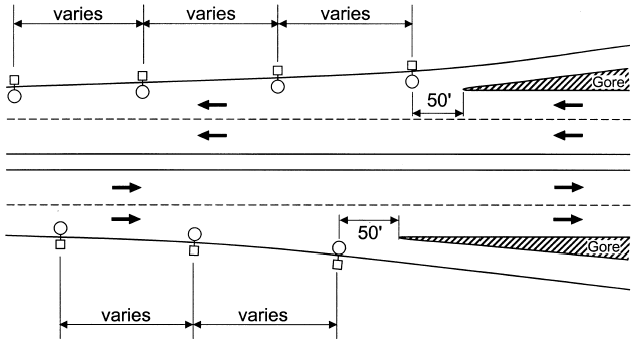

Typical placement for partial interchangelighting, 40 foot luminaire poles at merge and diverge lanes. (click in image to see full-size image)
Figure 6-2. Typical placement for partial interchange lighting, 40 foot luminaire poles at merge and diverge lanes.
