Section 2: Entrance Ramp Signing

Introduction

Figure 6‑1 through Figure 6‑3 illustrate entrance ramp signing for one-way and two-way frontage roads.

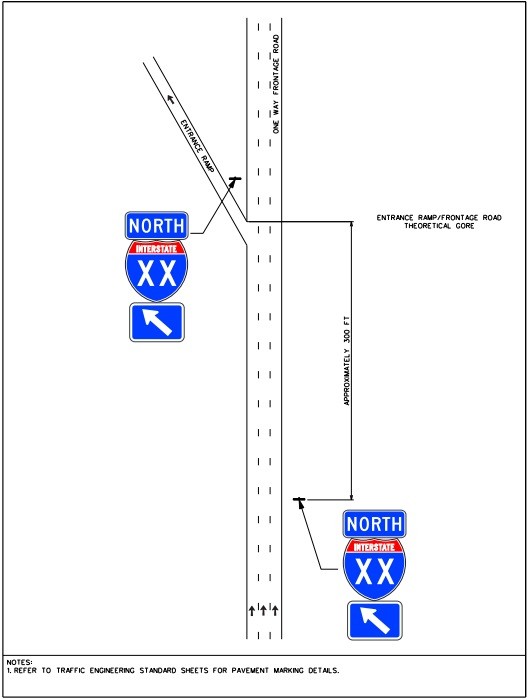

Typical signing for an entrance ramp froma one-way frontage road – diverge condition. (click in image to see full-size image)
Figure 6-1. Typical signing for an entrance ramp from a one-way frontage road – diverge condition.

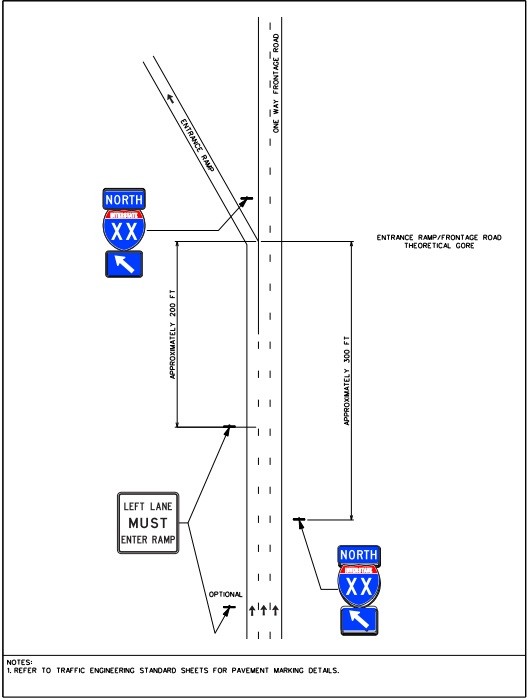

Typical signing for an entrance ramp from a one-way frontageroad – lane-drop condition. (click in image to see full-size image)
Figure 6-2. Typical signing for an entrance ramp from a one-way frontage road – lane-drop condition.
Typical signing for an entrance ramp froma two-way frontage road. (click in image to see full-size image)
Figure 6-3. Typical signing for an entrance ramp from a two-way frontage road.
