Section 5: Cross-Street Route Signing

Introduction

Figure 6‑18 through Figure 6‑21 illustrate cross-street route signing for typical and non-typical entrance ramp locations. The frontage road in the preceding figures can be two-way or one-way, or ramps leading directly to the freeway.

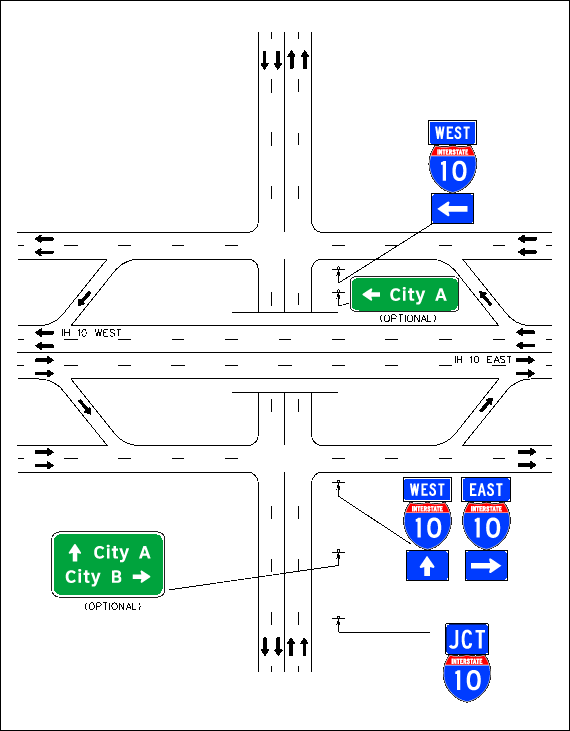

Cross-street route signing for left-directionentrance ramp located on the far-left frontage road and right-directionentrance ramp located on near-right frontage road. (click in image to see full-size image)
Figure 6-18. Cross-street route signing for left-direction entrance ramp located on the far-left frontage road and right-direction entrance ramp located on near-right frontage road.

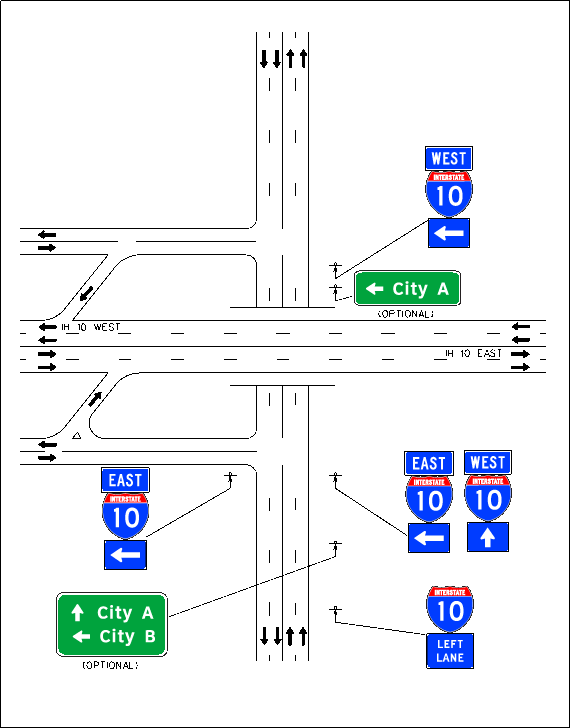

Cross-street route signing for left-direction entranceramp located on the far-left frontage road and right-direction entranceramp located on near-left frontage road. (click in image to see full-size image)
Figure 6-19. Cross-street route signing for left-direction entrance ramp located on the far-left frontage road and right-direction entrance ramp located on near-left frontage road.

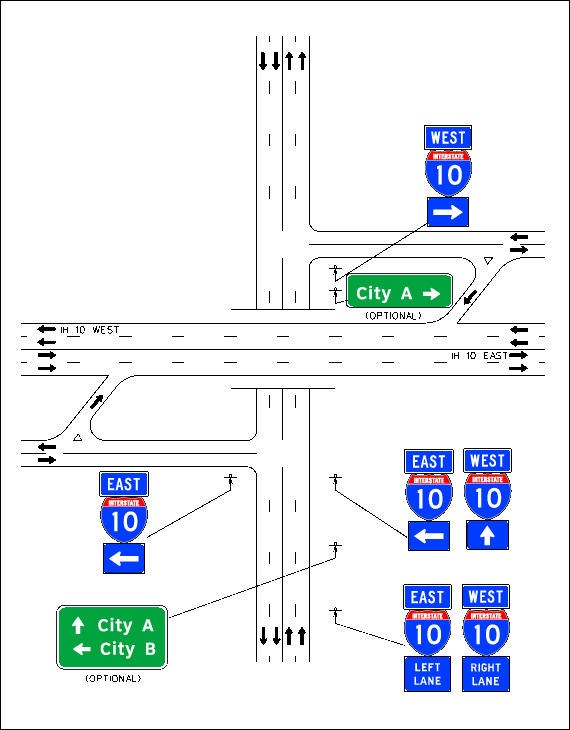

Cross-street route signing for left-direction entranceramp located on the far-right frontage road and right-directionentrance ramp located on near-right frontage road. (click in image to see full-size image)
Figure 6-20. Cross-street route signing for left-direction entrance ramp located on the far-right frontage road and right-direction entrance ramp located on near-right frontage road.

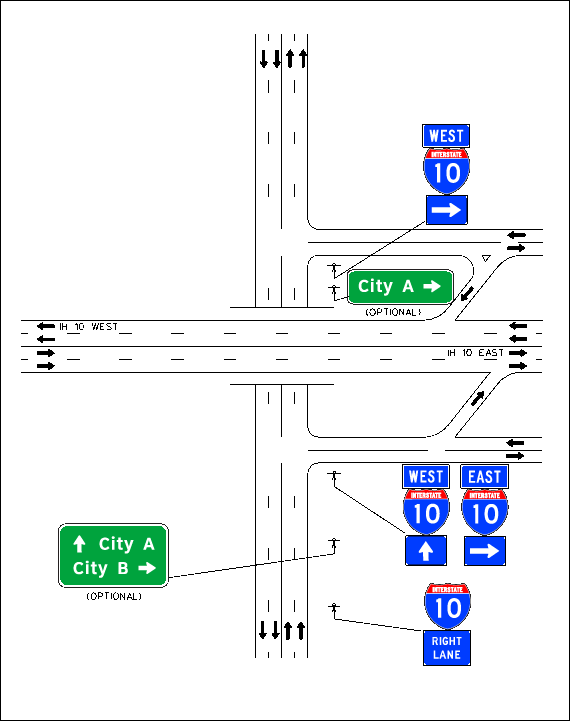

Cross-street route signing for left-directionentrance ramp located on the far-right frontage road and right-directionentrance ramp located on near-left frontage road. (click in image to see full-size image)
Figure 6-21. Cross-street route signing for left-direction entrance ramp located on the far-right frontage road and right-direction entrance ramp located on near-left frontage road.
