Section 2: Guide Sign Elements

Introduction

Freeway guide signs contain various design elements that inform drivers of a particular route or destination. This section provides design guidance on these elements, which include abbreviations, Route signs, arrows, and advisory sign panels.

Abbreviations

Abbreviations should be avoided whenever possible; however, abbreviations can be useful when completing destination messages on signs of limited size. When used, abbreviations should be only those that are commonly recognized and understood by motorists. The table below provides a list of the common abbreviations for freeway guide signs.
The words NORTH, SOUTH, EAST, and WEST must not be abbreviated when used with Route signs to indicate cardinal directions. The abbreviations for these words are intended for use with a destination name (place or street).
Periods are neither required nor suggested unless noted in the following table. In general, periods may be used when a cardinal direction is abbreviated as part of a destination name or when “United States” is abbreviated, other than for a U.S. numbered route.
Acceptable Abbreviations for Freeway Guide Signs
Word(s)
Abbreviations
Air Force
(
See
: United States Air Force)
Air Force Base
AFB
Agency
Agcy
Alternate
ALT
or
Alt
Arkansas (the state)
Ark
(preferred)
, AR,
or
Ar
Army
(
See
: United States Army)
Association
Assoc
Avenue
Ave
Beltway
Bltwy
(shield preferred)
Boulevard
Blvd
Branch
Not recommended
Business
Not recommended
Bypass
Not recommended
Causeway
Cswy
Center
Ctr
Circle
Cir
Compressed Natural Gas
CNG
Coast Guard
(
See:
United States Coast Guard)
Community College
CC
Construction
Const
Convention
Conv
County
Co
Court (street name only)
Ct
Cove
Not recommended
Creek
Not recommended
Crossing
Xing
Department
Dept
Division
Div
Downtown
Not recommended
Drive
Dr
East
E
Expressway
Expwy
Farm Road
FM
(shield preferred)
Farm to Market Road
FM
(shield preferred)
Fort
Ft
Freeway
Frwy
or
Fwy
Gardens
Not recommended
Hazardous Materials
HAZMAT
Heights
Not recommended
High Occupancy Vehicle
HOV
Highway
Hwy
Hospital
Not recommended
Information
Info
Institute
Inst
Interchange
Intchg
International
Intl
Interstate
IH
(shield preferred)
Junction
JCT
or
Jct
Junior College
JC
Lane
Ln
Left
Not recommended
Loop
Not recommended
use shield
Louisiana (the state)
La
(preferred) or
LA
Marine Corps
(
See:
United States Marine Corps)
Maximum
Max
Metropolitan
Metro
Mexico
Not recommended or
Mex
Miles Per Hour
MPH
Minimum
Min
Mount
Mt
Mountain
Mtn
National Guard
Not recommended
Naval Air Station
NAS
New Mexico (the state)
NM
North
N
Oklahoma
Okla
(preferred)
, OK,
or
Ok
Park
Not recommended
Park Road
PR
(shield preferred)
Parkway
Pkwy
Place
Pl
Point
Pt
Port
Not recommended
Railroad
RR
Ranch Road
RM
(shield preferred)
Ranch to Market Road
RM
(shield preferred)
Right
Rt
Road
Rd
Route
Rte
South
S
Spring or Springs
Not recommended
Spur
Not recommended
use shield
Square
Sq
State
Not recommended
State Highway
SH
(shield preferred)
Saint
St
Street
St
Summit
Smt
Temporary
Temp
Terrace
Ter
Texas
Tx
(preferred) or
TX
Through
Thru
or
THRU
Toll Road
Not recommended
Tourist
Not recommended
Trail
Tr
Trucks
Not recommended
Turnpike
Not recommended
University
Univ
United States
US
or
U.S.
United States Air Force
USAF
or
US Air Force
United States Army
US Army
United States Coast Guard
USCG
or
US Coast Guard
United States Marine Corps
USMC
or
US Marine Corps
United States Navy
USN
or
US Navy
Weight
Wt
West
W

Route Signs

Route signs identify the class and number of the highway facility of interest. Route signs can be mounted independently or within a freeway guide sign. Figure 4-1 illustrates the differences between the two types of Route signs. Independently mounted Route signs are mounted on a post and typically used on route confirmation assemblies. Examples of the appearance of independently mounted Route signs are shown in Figure 4‑2. Guide-sign mounted Route signs are attached to a larger guide sign. Figure 4‑3 shows the appearance of Guide-sign mounted Route signs.
General guidance on Route sign size and placement is presented later in this chapter. Dimensional data for Route signs (guide sign and independent use) are given in the
Standard Highway Sign Designs for Texas
.

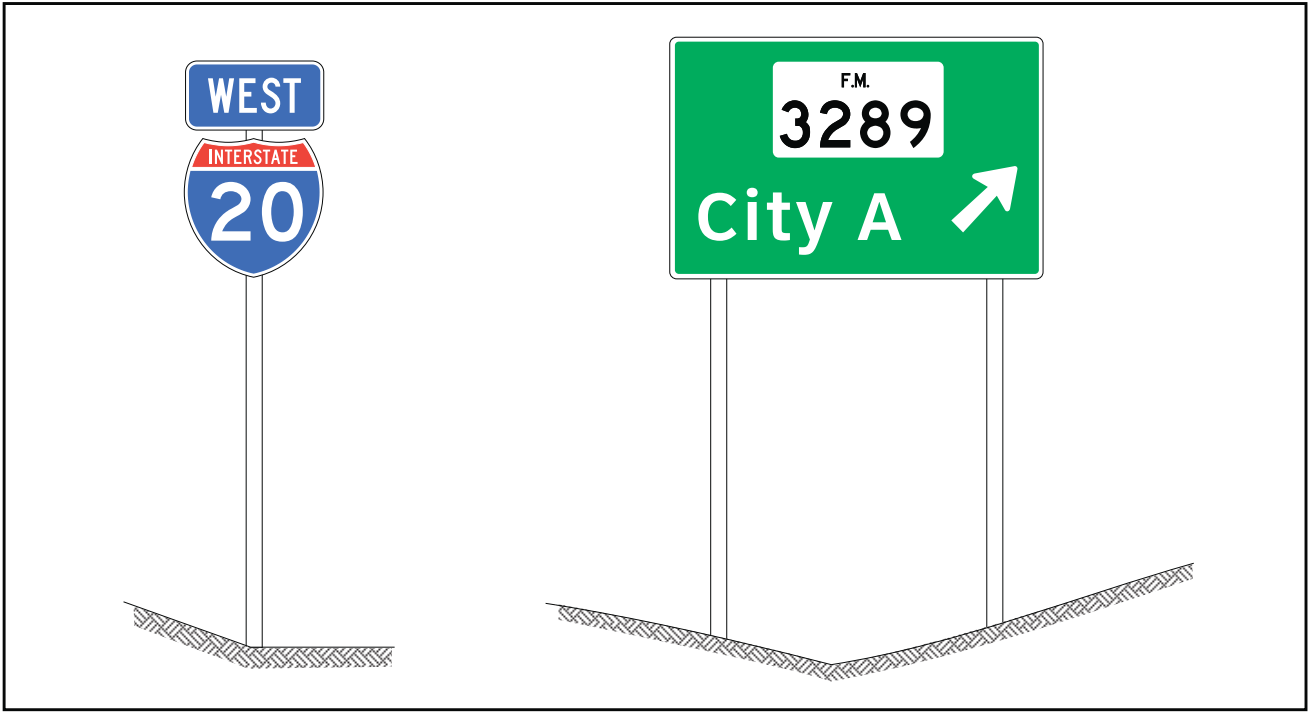

Types of Route sign mounts. (click in image to see full-size image)
Figure 4-1. Types of Route sign mounts.

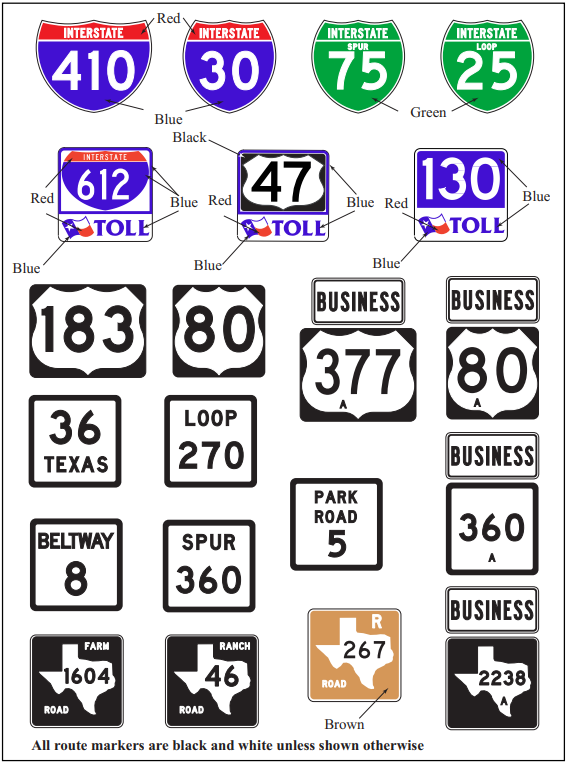

Independent ground-mounted Route signs.All route markers are black and white, unless shown otherwise. (click in image to see full-size image)
Figure 4-2. Independent ground-mounted Route signs. All route markers are black and white, unless shown otherwise.

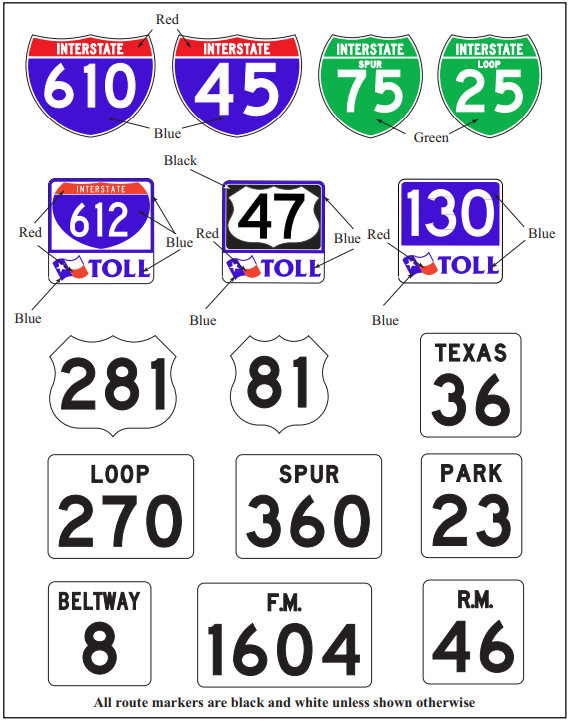

Guide-sign mounted Route signs. All routemarkers are black and white, unless shown otherwise. (click in image to see full-size image)
Figure 4-3. Guide-sign mounted Route signs. All route markers are black and white, unless shown otherwise.

Arrows

Arrows are used on freeway guide signs to indicate the direction toward designated routes or destinations. Variations of the “Up” arrow are all rotations of either of two arrow types (Type A and B) and are dependent on the type of guide sign and location of the arrow on the sign. The “Down” arrow (Type C) is a separate arrow type and has a set size for all applications. Figure 4‑4 shows the three basic types of arrows.

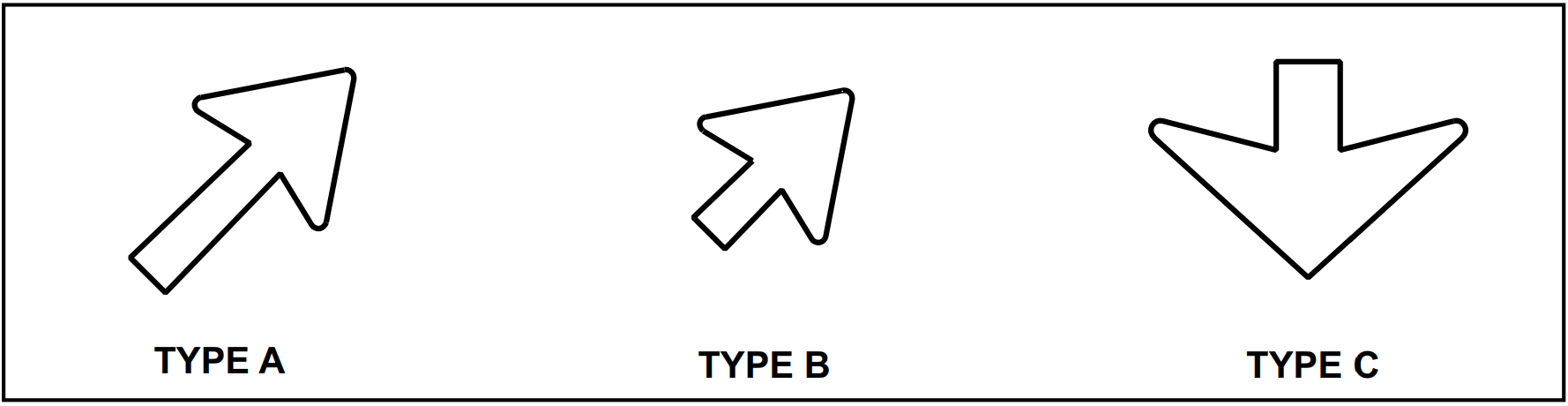

 Arrows used on freeway guide signs. (click in image to see full-size image)
Figure 4-4. Arrows used on freeway guide signs.
Type A arrows are primarily used on Exit Direction signs (Figure 4‑5). The Type A arrow is white and has a longer shaft than a Type B arrow. Type A arrow dimension details are provided in the
Standard Highway Sign Designs for Texas
.
On Exit Direction signs, both overhead and ground mounted, the Type A arrow must be upward slanting and should be pointed at 45 degrees from the horizontal to convey a clear comprehension of the direction to be taken. The arrow must also be placed at the right side of the sign for right exits, and at the left side of the sign for left exits. Specific arrow placement on a Guide sign panel is discussed later in this chapter.

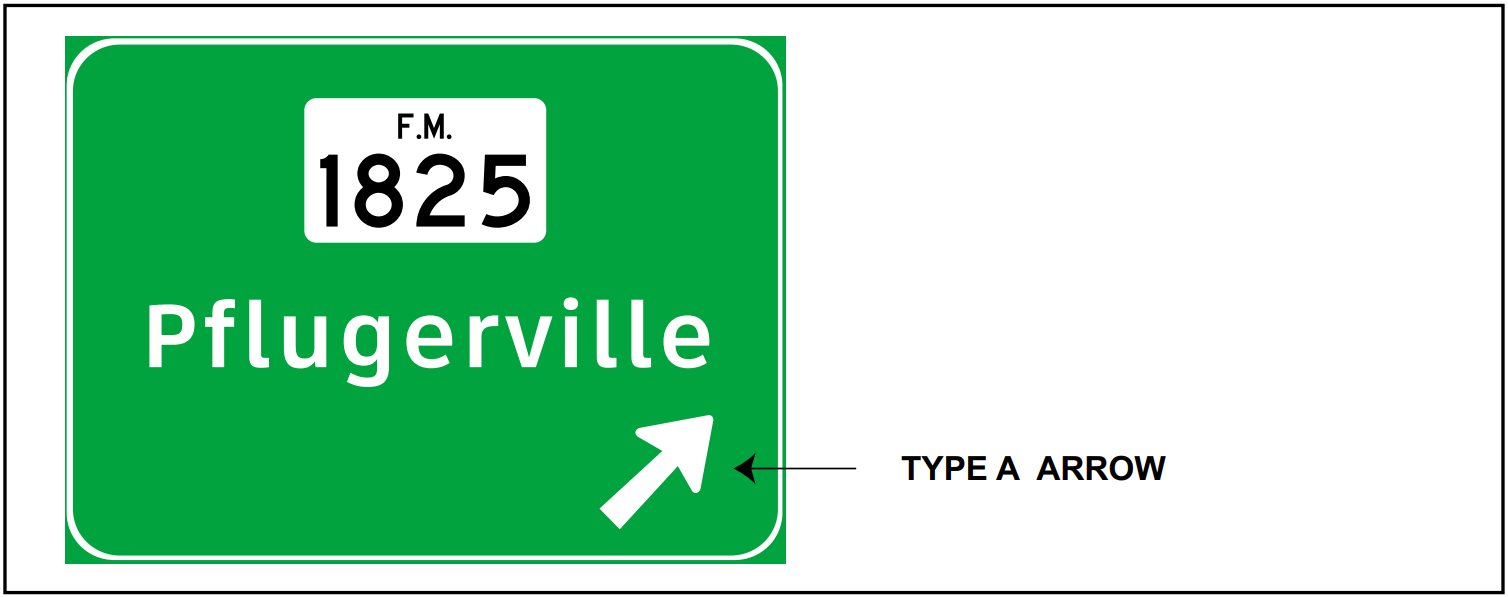

Type A arrow used on an Exit Directionsign. (click in image to see full-size image)
Figure 4-5. Type A arrow used on an Exit Direction sign.
Type B arrows are primarily used on Exit Direction signs for multi-lane exits (Figure 4‑6). Depending on its use and the sign panel color, the Type B arrow can be white or black. It has a shorter shaft than a Type A arrow. Specific standards for the arrows used on multi-lane Exit Direction signs are given in the
Standard Highway Sign Designs for Texas
. Type B arrows may also be used on single-lane Exit Direction signs.

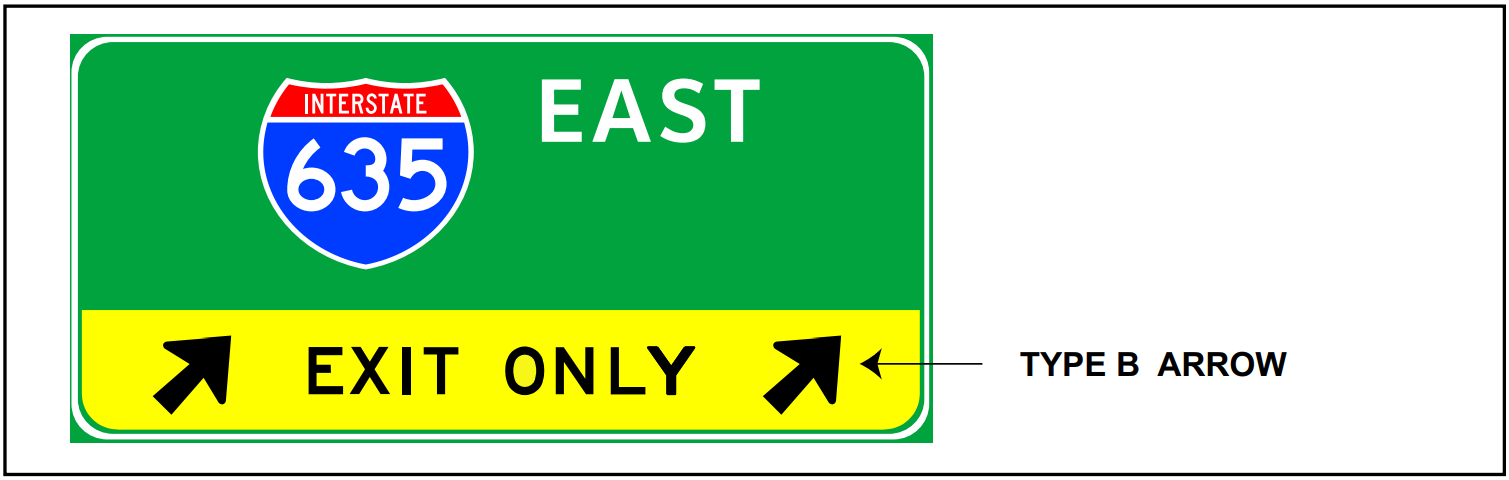

Type B arrows used on an Exit Only panel. (click in image to see full-size image)
Figure 4-6. Type B arrows used on an Exit Only panel.
Type C arrows are downward pointing arrows that are used only on overhead guide signs to indicate the use of specific lanes for traffic bound for a destination or route that can be reached only by being in the lanes so designated (Figure 4‑7). The Type C arrow is white and has one specified size. Downward pointing arrows must not be used unless an arrow can be pointed to each lane that can be used to reach the destination or route shown on the sign. The Type C arrow dimension detail is provided in the
Standard Highway Sign Designs for Texas.

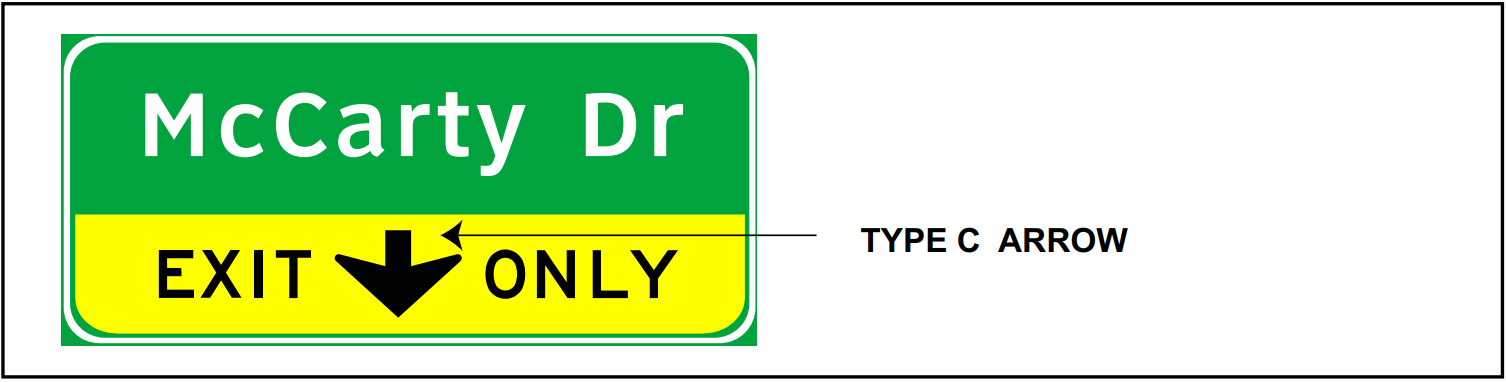

Type C arrow used on an Exit Only panel. (click in image to see full-size image)
Figure 4-7. Type C arrow used on an Exit Only panel.
The number of arrows on a sign structure as a whole must be equal to the number of lanes underneath the sign structure, unless there is an optional lane. When there is an optional lane, the number of arrows on the sign structure may be the same as the number of lanes immediately downstream of the structure, if the structure is located within the lane-increase transition.

Advisory Sign Panels

In some cases, it may be necessary or desirable to include an advisory or warning message as part of a guide sign panel. Figure 4‑8 shows two examples of Advisory sign panels. Situations possibly warranting the uses of Advisory or Warning sign panels include:
  • lane drop (Exit Only) at an exit
    — Exit Only signing is a common freeway guide signing practice that is described in the Texas MUTCD
  • advisory speed for a ramp —
    used where the advisory speed for an exit or connecting ramp is significantly lower than driver expectancy for the exit or ramp
  • a lane ending on the left side of the freeway (not a lane drop at an exit)
  • extremely low clearance situations.
Other types of warning messages may be appropriate to include as part of a guide sign panel. TxDOT staff should consult with the TxDOT Traffic Operations Division for assistance when a warning or advisory message is being considered for a guide sign panel.

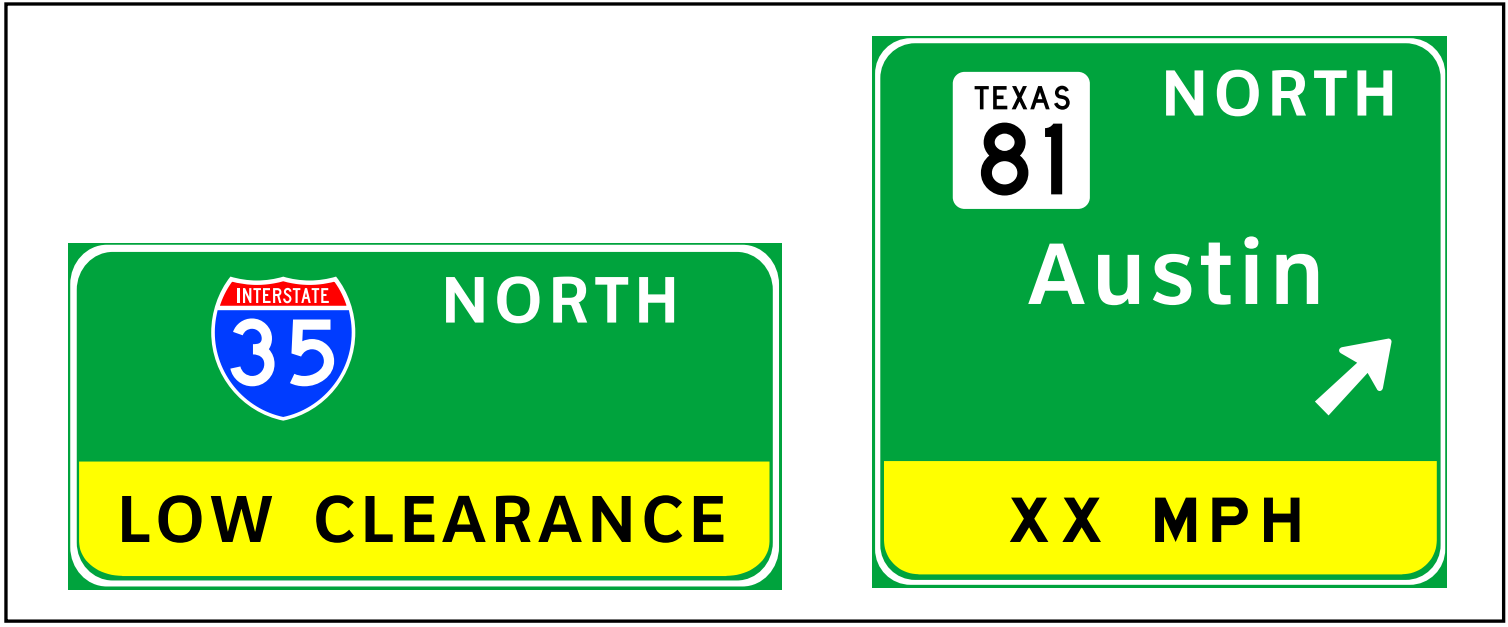

Examples of Advisory/Warning panels. (click in image to see full-size image)
Figure 4-8. Examples of Advisory/Warning panels.
