Section 8: Snow Wing

The snow wing attachment provides extrawidth on a motor grader or truck for plowing two lanes at a timeor picking up a lane and a shoulder at the same time. (click in image to see full-size image)

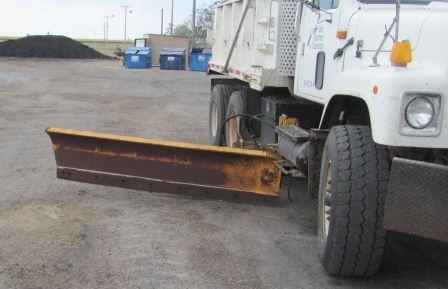

Figure 3-7. The snow wing attachment provides extra width on a motor grader or truck for plowing two lanes at a time or picking up a lane and a shoulder at the same time.

Pre-storm activities

Well before a storm strikes, be sure to:
  • lubricate all fittings and moveable points on the snow wing
  • check attachment points for tightness: they should be rigid
  • check blade and mold board for damage and replace blade if necessary
  • check all hydraulic fittings and connections
  • attach to equipment to check operation of snow wing.

During the storm activities

While using the equipment during a storm:
  • perform occasional walk around to ensure no leaks or other problems
  • check blade periodically for wear.

Post storm activities

Once the storm is over, be sure to:
  • clean equipment
  • lubricate all fittings and moveable parts
  • check blade and mold board for wear or damage
  • replace blade if necessary to prepare for future storms
  • check all welds for fatigue cracks.
