Combination Railing Type C221
Combination Railing Type C221
Classification | Combination |
Description | Vertical faced concrete parapet with a single pipe rail mounted 42 inches above the sidewalk/roadway surface. It features a bolt anchorage system for the steel rail posts that may be drilled and epoxy-anchored, allowing slip-forming of the concrete parapet. Its parapet is thicker than that of the C201 railing, from which its design is derived, allowing for optional use of welded wire reinforcement. |
Approved test criteria and level | Evaluated and approved for MASH TL-3. |
Nominal height | 42 inches |
Minimum height after maintenance overlays | 42 inches |

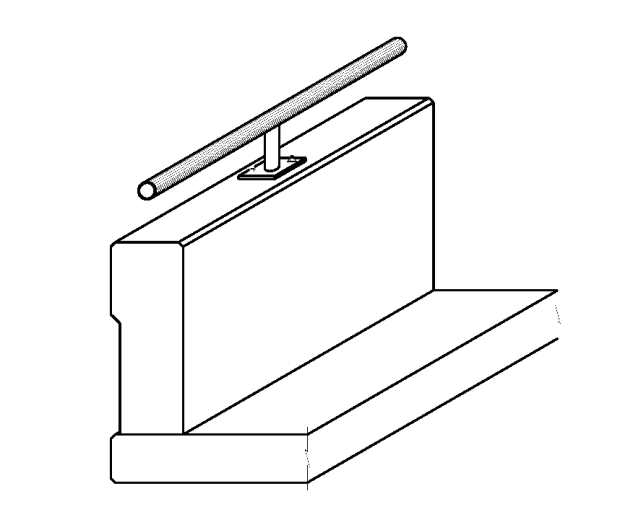

Figure A–12. Type C221 Railing
